Selection and configuration suggestions for flat bed CNC lathes
The selection and configuration of a flat bed CNC lathe is a complex and critical process involving multiple considerations. Here are some detailed selection and configuration recommendations:
1. Selection recommendations
Bed design
Stability: The bed structure should be strong and have sufficient rigidity to support high-precision guide rails and bearing seats, and should have a certain shock absorption capacity to maintain stability during processing.
Bed type: The bed is divided into heavy (integral bed) and light (split bed). The heavy bed has good stability but a higher price, which is suitable for the processing of large and heavy workpieces; the light bed is relatively cheap and suitable for the processing of small and medium-sized workpieces.
Guide rails and bearings
Guide rail type: The guide rail is an important part of the CNC lathe and has an important impact on the motion accuracy and service life of the equipment. Common guide rail types include quenched guide rails, plastic-coated guide rails, etc. The appropriate guide rail type should be selected according to the processing requirements.
Bearing selection: The bearing should have good wear resistance and life, and its maintenance and maintenance requirements should be considered to maintain a good working condition in daily use.
Control system
System type: The control system is the core part of the CNC lathe. Advanced control systems should be selected to achieve efficient and accurate processing. Common CNC systems include GSK, Mitsubishi, Siemens, Fanuc, etc. The appropriate system version should be selected according to the processing requirements.
Software and interface: The control system should have complete software functions and interfaces to meet different processing requirements. For example, it should have complete interlocking, safety protection and fault self-diagnosis alarm functions, and should support standard communication interfaces such as RS232 to facilitate data transmission with the computer.
Safety protection
Mechanical safety devices: Mechanical safety devices such as emergency stop buttons and safety doors should be equipped to ensure the personal safety of the operator.
Electrical safety protection: Electrical safety protection measures such as leakage protection and short circuit protection should be available to prevent electrical accidents.
Processing requirements
Processing range: The appropriate machine model should be selected according to the maximum diameter and length of the processed product, repeated positioning accuracy and other requirements.
Processing type: The appropriate machine tool configuration should be selected according to the processing type (such as rough processing, fine processing, etc.). For example, for rough machining, you can choose a gear head box with high torque but high noise; for fine machining, you can choose a single-axis head box with low noise, high speed and good finish.
2. Configuration suggestions
Chuck and tool holder

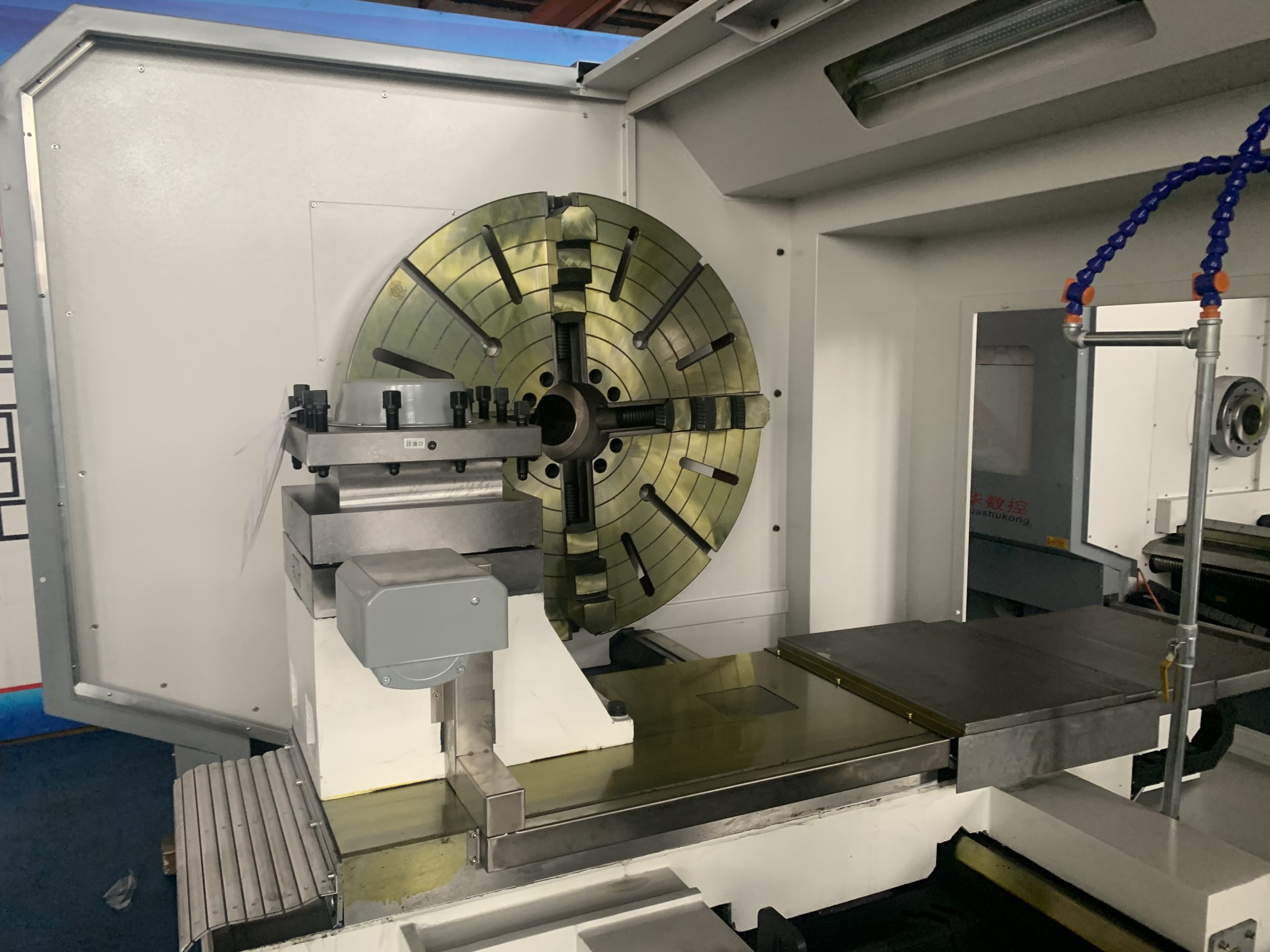

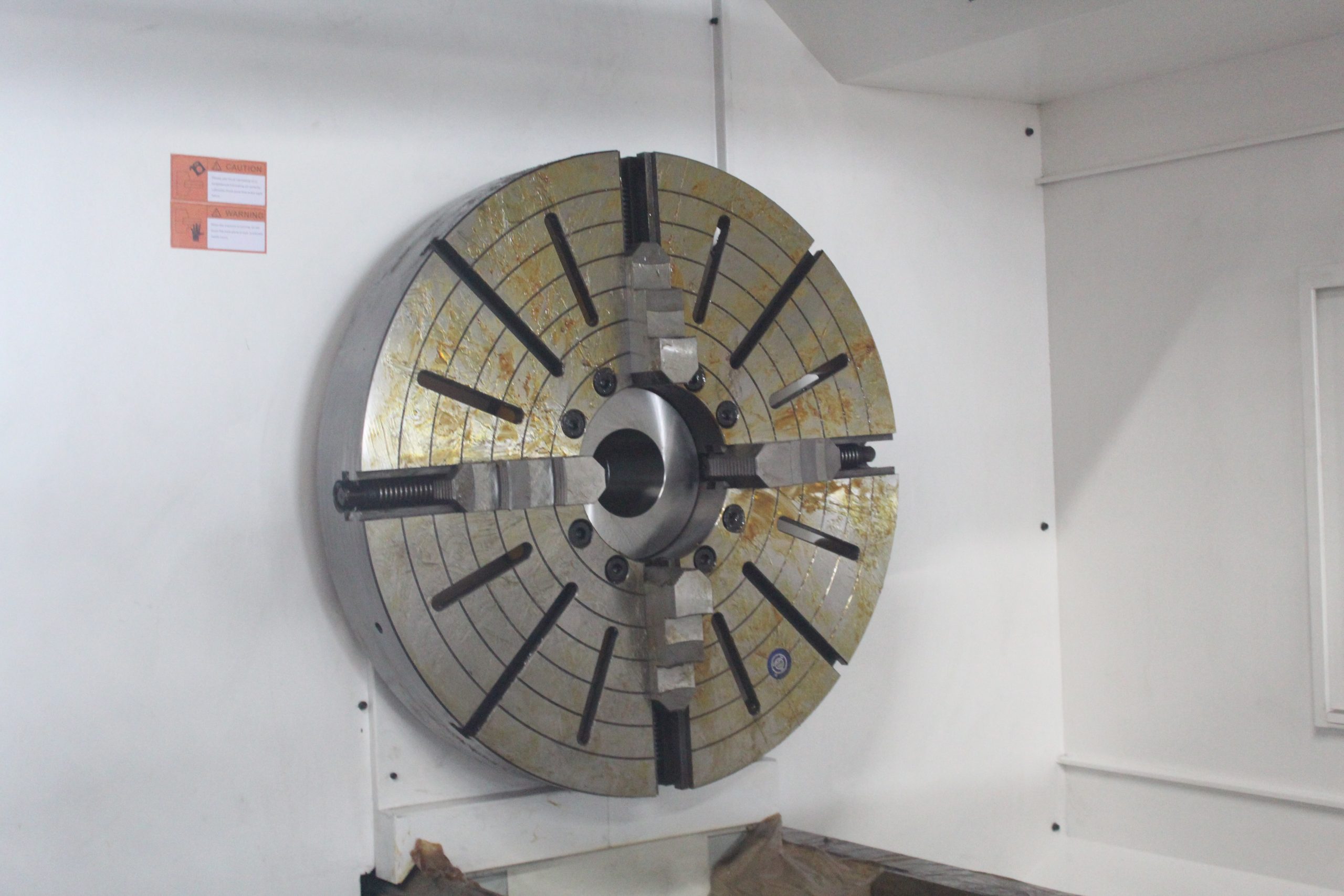

Chuck type: Select the appropriate chuck type according to the processing requirements, such as manual chuck, hydraulic chuck, pneumatic chuck, etc.
Tool holder configuration: Common tool holders include four-station electric tool holders, six-station or eight-station electric turrets, etc., and the appropriate tool holder configuration should be selected according to the processing requirements.
Tailstock and accessories
Tailstock type: Select the appropriate tailstock type according to the processing requirements, such as manual tailstock, hydraulic tailstock, pneumatic tailstock, etc.
Accessory configuration: Necessary accessories should be equipped, such as coolant pump, centralized lubrication device, etc., to improve processing efficiency and service life of the machine tool.
Other configurations
Servo motor and inverter: Servo motors and inverters with stable performance should be selected to ensure stable operation and efficient processing of the machine tool.
Appearance and protection: The appearance of the machine tool should be beautiful and generous, and it should also have effective oil-proof, waterproof, chip-proof and other protective measures to ensure the long-term stable operation of the machine tool.
In summary, the selection and configuration of the flat bed CNC lathe should be comprehensively considered according to the specific processing requirements. By selecting the appropriate bed design, guide rails and bearings, control system, safety protection, and chuck, tool holder, tailstock and other configurations, it can ensure that the machine tool can play the greatest advantage in the production process and improve production efficiency and processing accuracy.
