Slant Bed Cnc Auto Lathe Machine TCK650 with Y-axis Control

CNC Lathe Machine TCK650 CNC Slant Bed CNC turning Center

TCK650 slant bed cnc lathe machine with max swing over bed 500mm,max processing length can choose 500mm,1000mm,1500mm,2000mm

Slant bed cnc lathe machine TCK650

ITM			UNIT	TCK650 (45degree)
Work Range	Max. swing dia. over bed		mm	650
	Max. swing dia. over slide		Mm	400
	Max. cutting dia. Of disc type parts		mm	680
	Max. cutting dia. Of axle type parts		mm	400
	Distance between centers		mm	750/ 650
X/Z/Y Axis	X axis travel		mm	400
	Z axis travel		mm	750/ 650
	Y axis		mm	±50
	X Z Fast feed		mm	20000
Spindle	Spindle bore		mm	66(A2-6)/86(A2-8)
	Max through hole bar diameter		mm	50(A2-6)/75(A2-8)
	spindle nose type			A2-6/A2-8
	spindle speed		rpm	3500
	Main motor power (C AXIS)		kw	7.5KW Servo
accuracy	X Z axis positioning accuracy		mm	0.012
	X Z repeatability		mm	0.003
	Diameter uniformity		mm	0.03/300
	Flatness		mm	0.03/300
Number Turret				12 servo power turret/12 hydraulic servo turret
power turret	turret type			BMT45/BMT55 Y AXIS
	Outer diameter Shank diameter			20X20/25X25
	Inner shank diameter			32
	Driven tool	End face driven tool		ER25/3000RPM
		Side face driven tool		ER25/3000RPM
Chuck			mm	Hydraulic Chuck 10 inch
Machine size			mm	2850×1900×1960
Machine weight			T	4.2

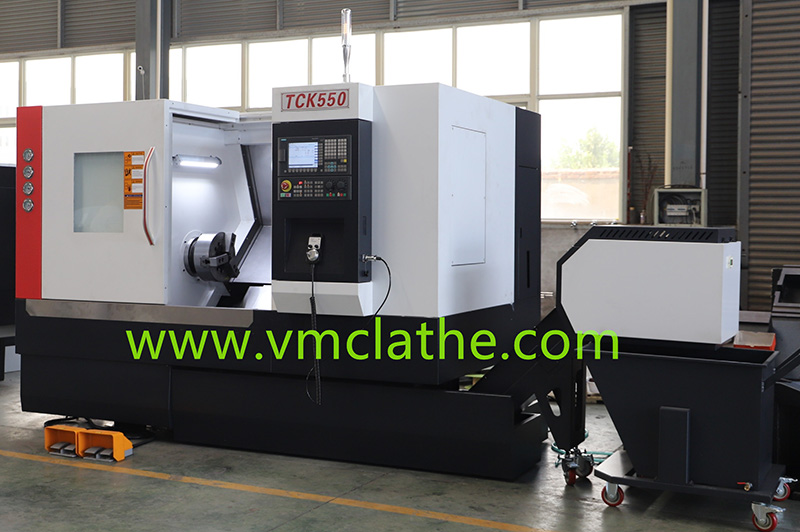

TCK650 slant bed cnc lathe machine with Y axis and live turret

TCK650 Detail Display

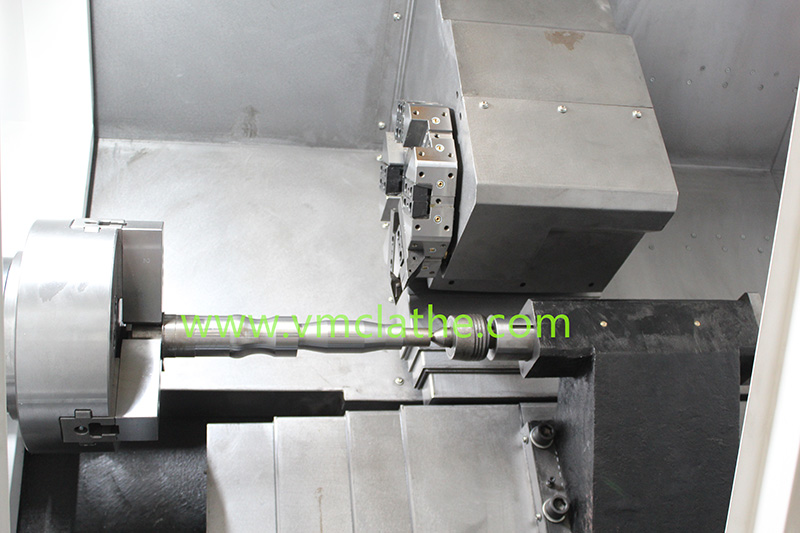

China high precision slant bed turning milling center cnc machine lathe TCK650 with Y axis for complex machining

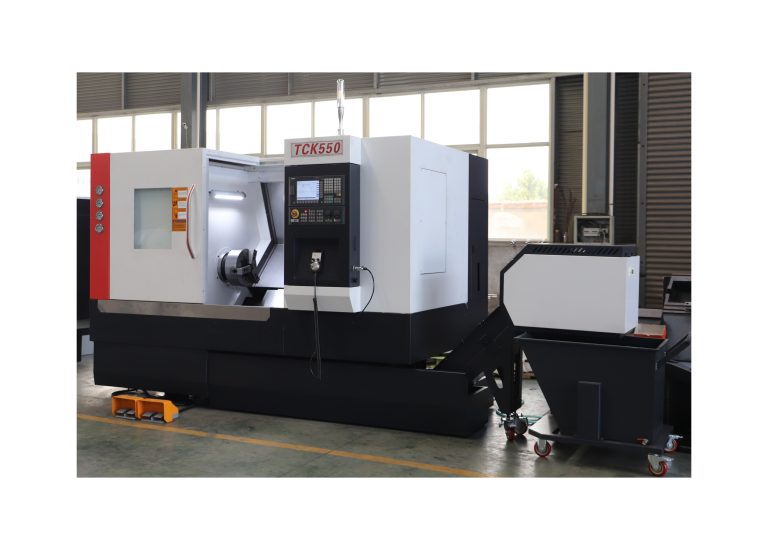

custom factory price high precision cnc turning horizontal lathe TCK650 with slant bed and live turret y axis

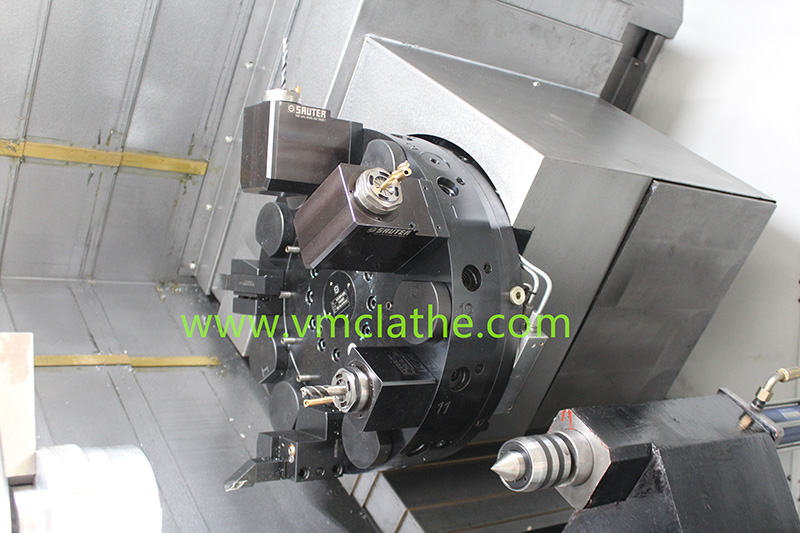

Slant Bed Cnc Auto Lathe Machine TCK650 Automatic Heavy Cutting cnc Lathe Machine with Y-axis control

Standard Configuration:

CNC controller: GSK988TA
Hydraulic hollow chuck 250 mm with hydraulic station
A2- 6 spindle.
Hydraulic spindle brake
Integral hydraulic tailstock , hydraulic sleeve, with tailstock guiderail cover
BMT45 12 station power turret (Including 3pcs axial
live tool holder s 2pcs radial live tool holders).
Standard with 4 non live tool holders
With Y axis
Main motor s ervo motor with C axis function.
With linear guideway & ball screw
Automatic lubrication system
Coolant system.
Light ing system

Optional Configuration:

Change to A2-8 spindle
Change to BMT55 power turret
Add extra 0 degree radial live tool holder
Add extra 90 degree (axial live tool holder
Add extra non live tool holder

After sales services:

Warranty is one year , we would offer the parts (quality problem) free of charge during this period.
GSK, servo driven, motor and transformer, warranty is 3 years
