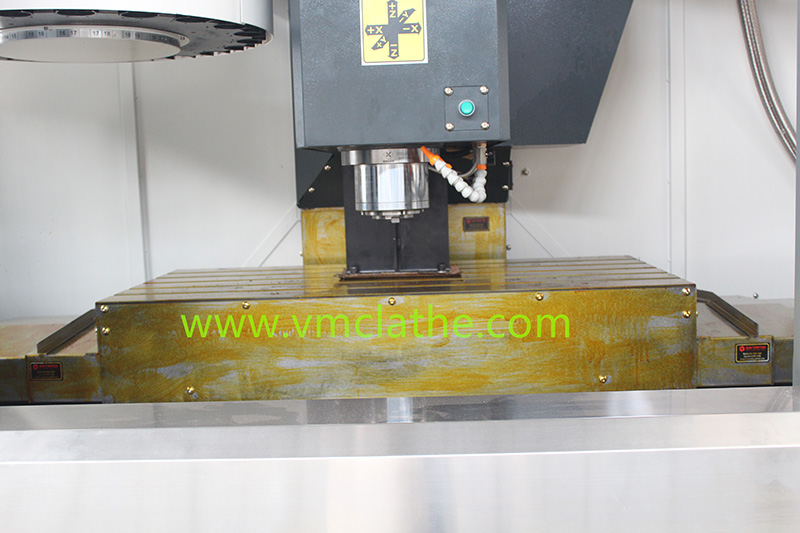

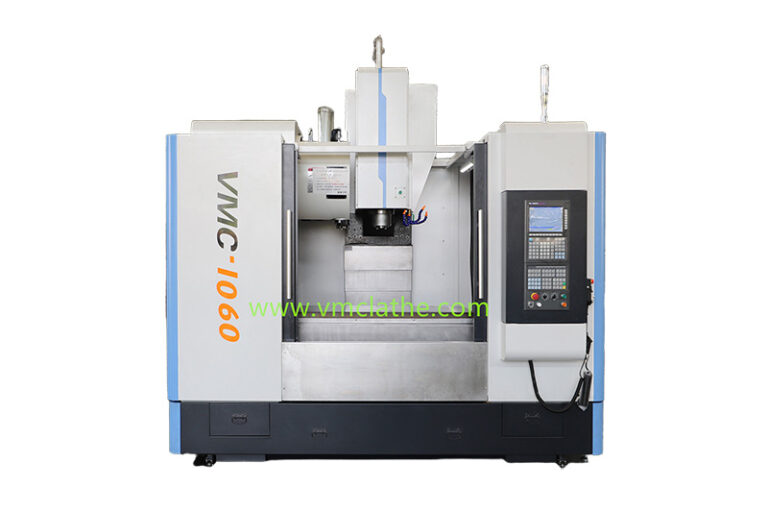

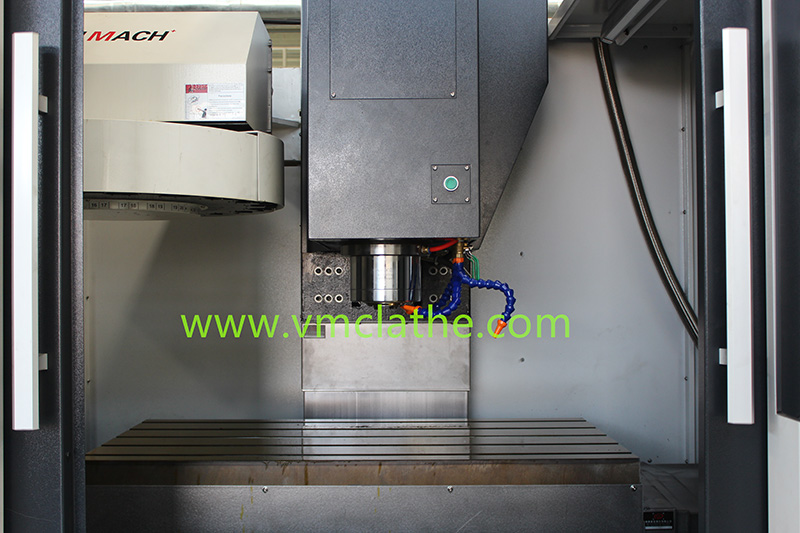

Vertical Machining Center VMC1060 Roller Linear Guide Siemens Controller Cnc Machining Center For Sale
| ITEM | UNIT | VMC1060 |
| Size | MM | 1200 X600 |
| Max load | KGS | 800 |
| T-Slot size | MM | 18 X 5 |
| X-axis | MM | 1000 |
| Y-axis | MM | 600 |
| Z-axis | MM | 550 |
| Spindle nose to table | MM | 100-650 |
| Spindle center to z axis guide surface | MM | 655 |
| Spindle taper | BT40-150 | |
| Spindle speed | RPM | 8000 |
| spindle motor power | KW | 11/15 |
| X Fast feed | M/MIN | 24 |
| Y Fast feed | M/MIN | 24 |
| Z Fast feed | M/MIN | 20 |
| cutting speed | MM/MIN | 1-1000 |
| X feed motor power | N | 18 |
| Y feed motor power | N | 18 |
| Z feed motor power | N | 18 |
| Types tool changers | Arm type tool changer ATC | |
| Capacity of tools | 20/24 | |
| Tool change time | S | 8/2.5 |
| Position Accuracy | MM | ±0.006 |
| Repeatability | MM | 0.008 |
| machine size | MM | |
| weight | Kgs | 5800 KGS |
