1. CNC controller: GSK988
2. Spindle 1 hydraulic hollow c huck 200 mm
3. Spindle 2 hydraulic hollow chuck 200mm
4. 15 station BM T45 power turret (Including live tool holders : radial one and axial one
5. With non live tool holders.
6. With Y axis.
7. Spindle brake.
8. Taiwan l inear guide way & ball
9. Chain type chip conveyor.
10. Automatic lubrication system
11. Coolant system.
12. Light ing system
Products Categories
Get A Free Quote
Dual Spindle Slant Bed Cnc Lathe Machine TCK50S
1. Dual spindle slant bed cnc lathe with Y axis
2. 12-Station BMT45 driven tool turret
Slant bed cnc lathe machine with 2 spindles and living turret Y axis TCK50S for metal processing
The dual-spindle design allows the machine tool to process two surfaces in one clamping, reducing the number of clamp changes of the workpiece and improving processing efficiency.
YZCNC-TCK50S Dual Spindle Turning Center
| Bed inclination | 45 degree | |
| Max.swing over bed | Spindle | 500mm |
| Sub-spindle | 400mm | |
| Max. Max. turning diameter | 360mm | |
| Max. length of workpiece | 450mm | |
| X AXIS | 350mm | |
| Y AXIS | ±45mm | |
| Z AXIS | Spindle Z1 | 500mm |
| Sub-spindle Z2 | 500mm | |
| X-axis rapid movement | 24mm/min | |
| Y-axis rapid movement | 10mm/min | |
| Z-axis rapid movement | 30mm/min | |
| Spindle nose | Spindle Z1 | A2-6 |
| Sub-spindle Z2 | A2-5 | |
| Spindle bore | Spindle Z1 | 66mm |
| Sub-spindle Z2 | 56mm | |
| Max. bar capacity | Spindle Z1 | 52mm |
| Sub-spindle Z2 | 42mm | |
| Spindle speed | Spindle Z1 | 50-4500rpm |
| Sub-spindle Z2 | 50-4500rpm | |
| Motor power | Spindle Z1 | 11KW |
| Sub-spindle Z2 | 5.5KW | |
| Chuck size | Spindle Z1 | 8寸 8 inches |
| Sub-spindle Z2 | 6寸6inches | |
| Driven Tool Turret type | BMT45 | |
| No. of Driven Tool Turret stations | 12nos | |
| Max. speed of driven tool | 500rpm | |
| Driven tool | End face driven tool | ER25/3000RPM |
| Side face driven tool | ER25/3000RPM | |
| Inner shank diameter | 25/ 32mm | |
| Outer diameter Shank diameter | 20X20mm 25X25mm | |
| Machine tool accuracy | X Z axis positioning accuracy | 0.012mm |
| X Z repeatability | 0.003mm | |
| Machine Size | 2900X1900X2200mm | |
| Machine weigth | 4.2T | |
Dual spindle slant bed cnc lathe machine TCK50S

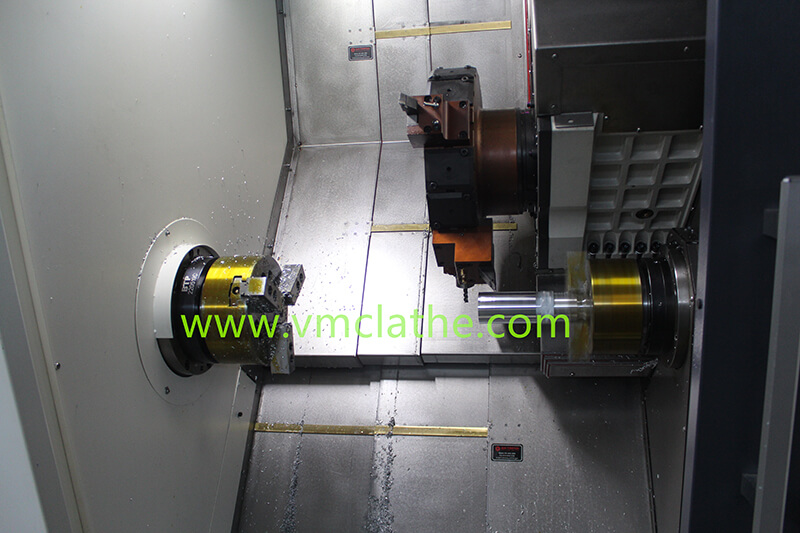

TCK50S Detail Display

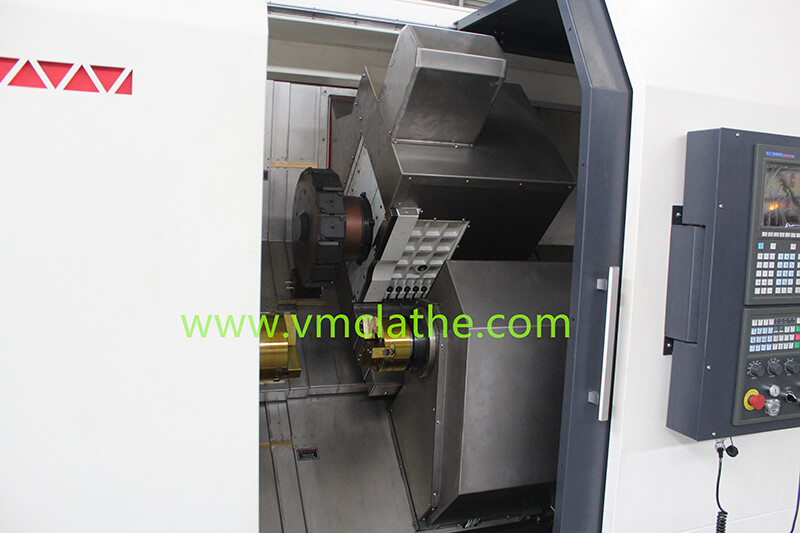

Dual spindle CNC turning center slant bed lathe with live tooling and Y axis C axis drilling milling machine TCK50S lathe manuf
new lathe cnc slant bed cnc lathe machine TCK50S with sub-spindle live turret Y axis turning milling drilling threading
slant bed cnc lathe machine with 2 spindles and living turret Y axis TCK50S for metal processing
Get Free Quote of TCK50S
