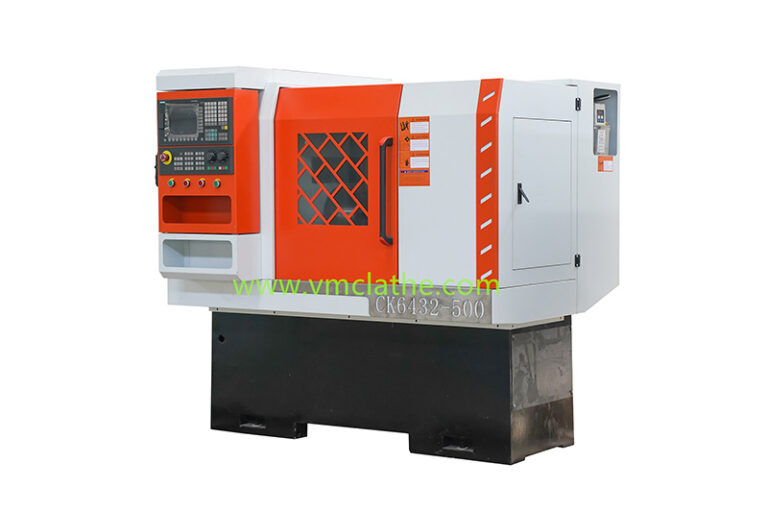

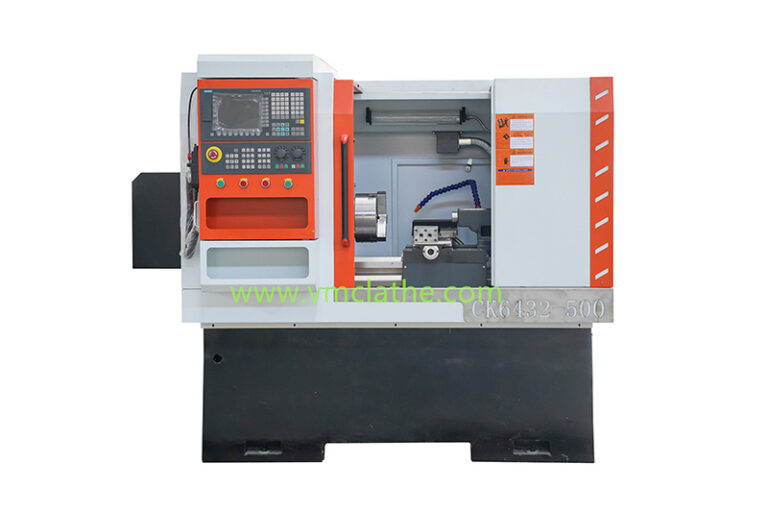

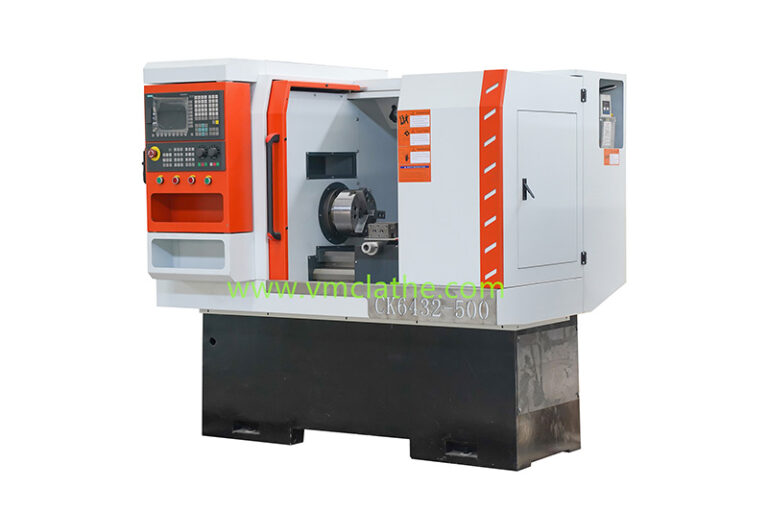

| ITM | unit | CK6432 |
| Max. Swing over bed | MM | 360 |
| Max. Swing over cross slide | MM | 180 |
| Max. work length | Mm | 450 |
| Max. Z axis Travel | MM | 500 |
| Max. X axis Travel | MM | 290 |
| Spindle bore | MM | 60 |
| Spindle nose | A2-6 | |
| Spindle speed range | RPM | 100-2500 |
| Spindle type | unit | Independent spindle |
| Chuck | MM | manual 3 jaws 200mm |
| Bed width | MM | 260 |
| x/z fast feed | Mm/min | 6000/8000 |
| x/z cutting travel speed | Mm/min | 1-6000 |
| Number of tool turret | gang type tool post | |
| Tool shank type | MM | 16*16/20*20 |
| Positioning accuracy | MM | X≤0.010 Z ≤0.015 |
| Repeatability Psoitioning accuracy | MM | X≤0.0075 Z ≤0.010 |
| Min. unit set | MM | 0.001 |
| roundness | MM | ≤0.007 |
| Diameter uniformity | MM | ≤0.03 （length 300） |
| Flatness | MM | ≤0.02 （Diameter 300） |
| Surface Roughness (Steel) | Ra1.6um | |
| Dia. of tailstock sleeve | MM | 60 |
| Tailstock sleeve taper | MT4 | |
| Max. Tailstock sleeve travel | MM | 120 |
| Spindle drive motor power | KW | 4 |
| Coolant pump power | W | 120 |
| size | MM | 1650X1400X1550 |
| weight | 1.2T |
