Standard configuration:
- GSK controller
- Four station electrical tool post or gang type tool post
- collect
- manual tailstock
Optional configuration:
- Fanuc/Siemens/Mitsubishi controller
- Hydraulic chuck and hydraulic tailstock
- chip conveyor
- bar feeder
Products Categories
Get A Free Quote

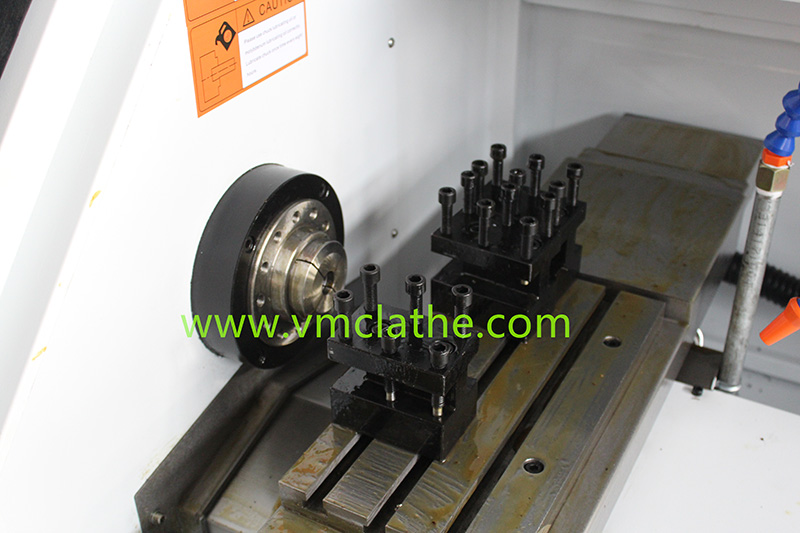

CNC Lathe Machine CK0640 for Small Metal Parts Machining

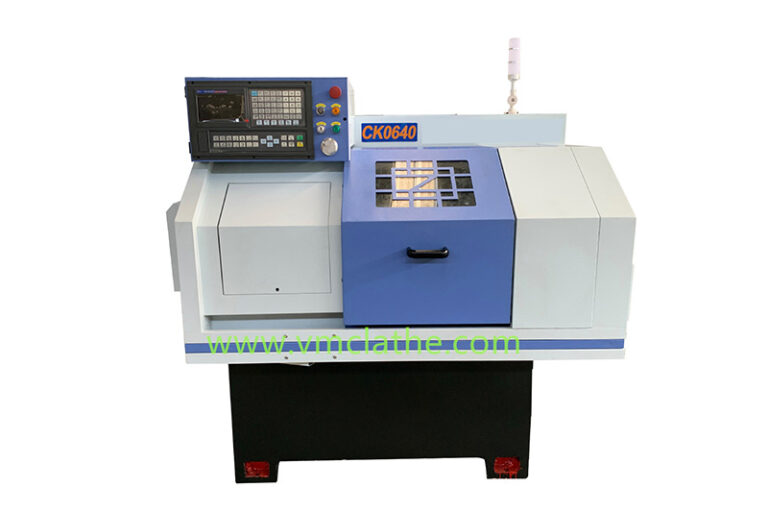

Mini cnc lathe machine CK0640 for aluminum parts

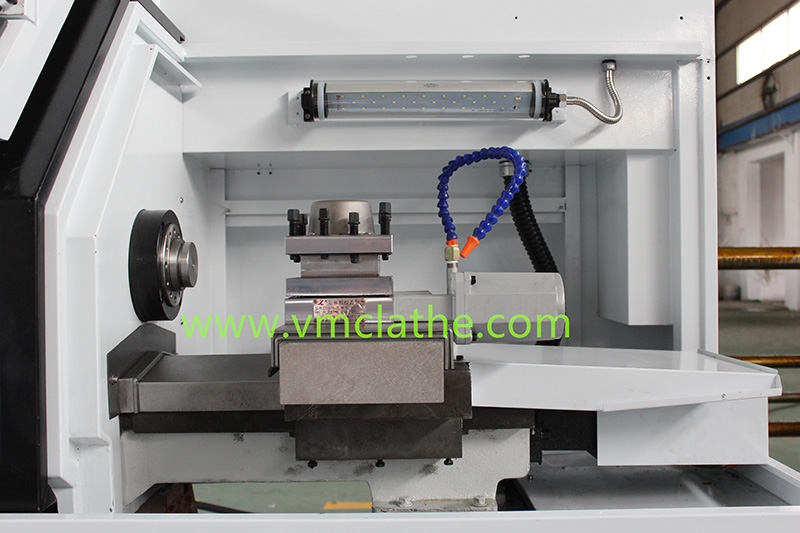

Mini size cnc lathe machine CK0640 with gang type tool post made in China
CK0640 cnc lathe machine
| ITM | unit | CK0640 |
| Max. Swing over bed | MM | 260mm |
| Max. Swing over cross slide | MM | 100mm |
| Max. work length | Mm | 200mm |
| Max. Z axis Travel | MM | 280mm |
| Max. X axis Travel | MM | 280mm |
| Spindle bore | MM | 48mm |
| Spindle nose | A2-5 | |
| Spindle speed range | RPM | 50-2500 |
| Spindle type | unit | Independent spindle |
| Chuck | MM | Pneumatic chuck/manual 3 jaws 160mm |
| Bed width | MM | 260 |
| x/z fast feed | Mm/min | 6000/8000 |
| x/z cutting travel speed | Mm/min | 1-6000 |
| Number of tool turret | gang type tool post | |
| Tool shank type | MM | 16*16/20*20 |
| Positioning accuracy | MM | X≤0.010 Z ≤0.015 |
| Repeatability Psoitioning accuracy | MM | X≤0.0075 Z ≤0.010 |
| Min. unit set | MM | 0.001 |
| roundness | MM | ≤0.007 |
| Diameter uniformity | MM | ≤0.03 （length 300） |
| Flatness | MM | ≤0.02 （Diameter 300） |
| Surface Roughness (Steel) | Ra1.6um | |
| Dia. of tailstock sleeve | MM | 55 |
| Tailstock sleeve taper | MT4 | |
| Max. Tailstock sleeve travel | MM | 150 |
| Spindle drive motor power | KW | 4 |
| Coolant pump power | W | 90 |
| size | MM | 1600X1200X1550 |
| weight | 800KG |
Small size cnc lathe machine CK0640 for metal working
CK0640 Detail Display
