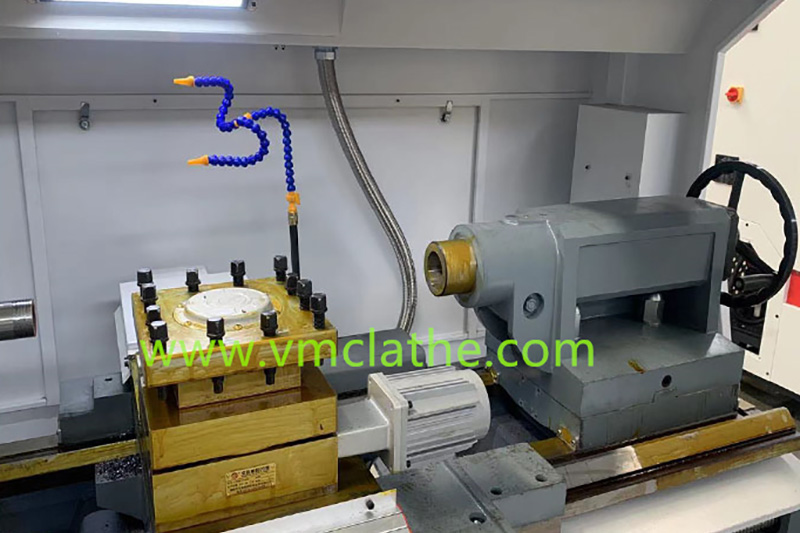

CNC Lathe Flat Turning CNC Machine CK6161 with 8-station Turret

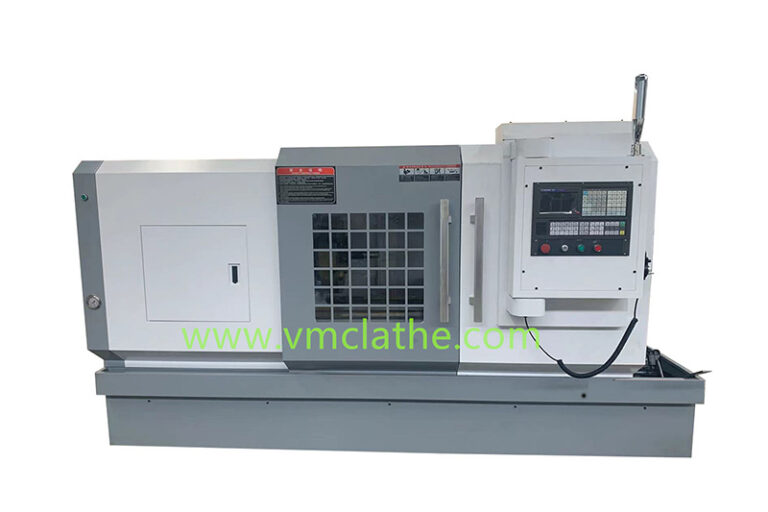

Factory Direct Sale High Precision metal CNC Lathe CK6161

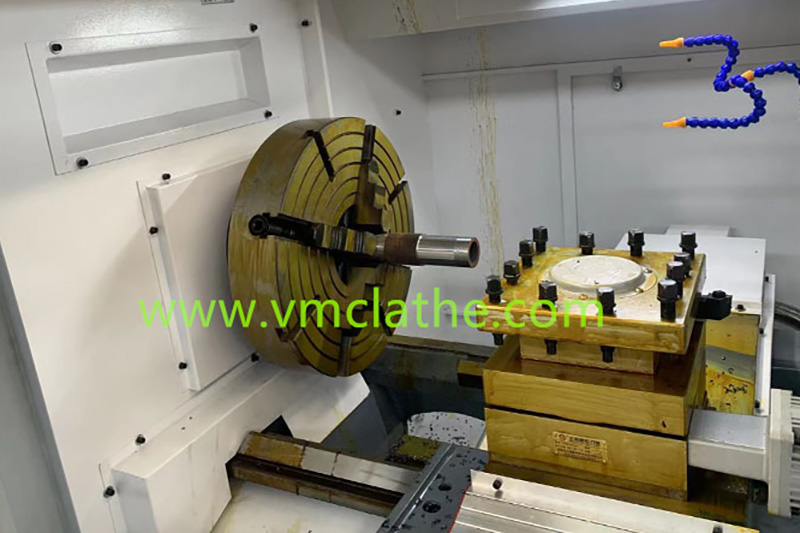

Manufacturer of CE Certified CNC Lathe CNC Turning Center CK6161

CK6161 cnc lathe machine

ITM unit CK6163
Max. Swing over bed MM 630
Max. Swing over cross slide MM 380
Max. center distance MM 4000
Spindle bore MM 105
Spindle speed steps   4  steps
Chuck MM Manual 400 3-jaws chuck
Bed width MM 550/600
x/z fast feed Mm/min 6000/8000
Number of tool turret   4/6/8
Tool shank type MM 32*32
Positioning accuracy MM X-axis (transverse) ≤ 0.02  Z-axis (longitudinal) ≤ 0.025
Repeatability Positioning accuracy MM X-axis (transverse) ≤0.015  Z -axis (longitudinal) ≤ 0.010
roundness MM ≤0.01
Diameter uniformity MM ≤0.03(length 300mm)
Flatness MM ≤0.02(Dia.300mm)
Surface roughness   ≤Ra3.2um Steel parts
Dia.of tailstock sleeve MM 100
Tailstock sleeve taper   MT6
Max. Tailstock sleeve travel MM 250
Spindle drive motor power KW 11
Coolant pump power KW 120
size MM The length of the machine is different due to the width of the guide rail (after the customer determines the model, it will be determined separately)
weight   The length of the machine is different due to the width of the guide rail (after the customer determines the model, it will be determined separately)
X,Z,C axes cnc lathe machine CK6161 with C axis spindle indexing
CK6161 Detail Display

Standard configuration:

  1. GSK980 TDi controller
  2. Four station electrical tool post
  3. Manual chuck
  4. manual tailstock

Optional configuration:

  1. Fanuc/Siemens/Mitsubishi controller
  2. Hydraulic chuck and hydraulic tailstock
  3. chip conveyor
  4. processing length:2000/3000/4000/5000 mm
