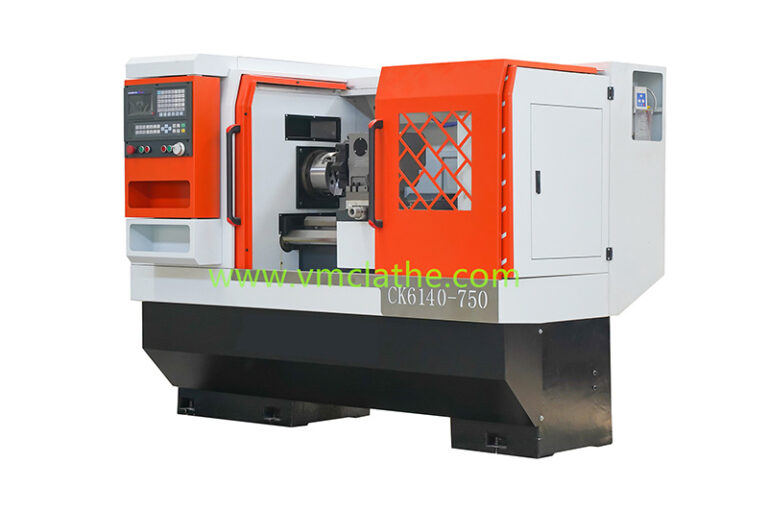

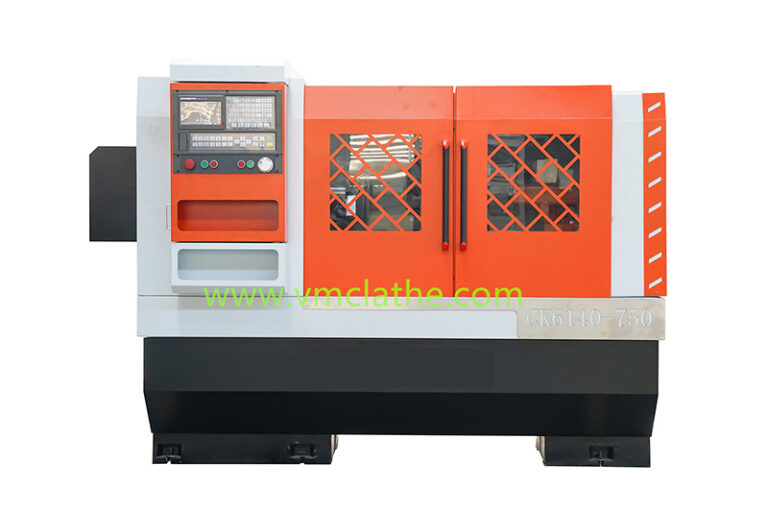

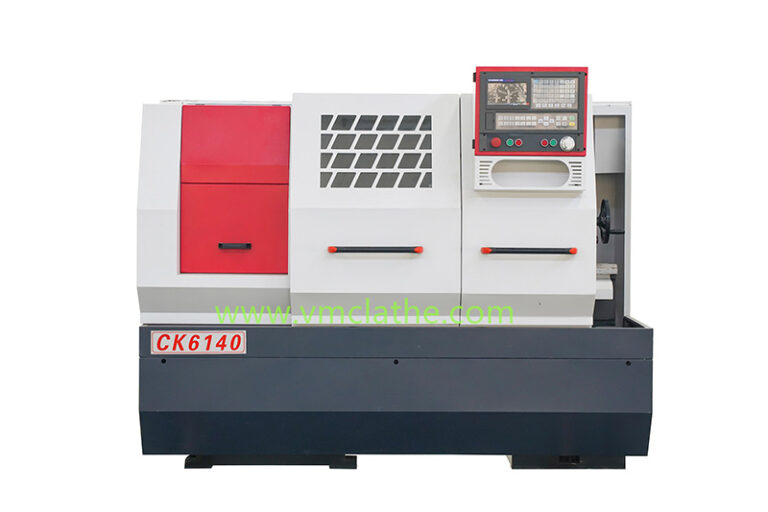

CK6140 Heavy cutting precision Cnc metal lathe machine high performance 3 axis cnc lathe mini Torno fanuc
| ITM | unit | CK6140 |
| Max. Swing over bed | MM | 400 |
| Max. Swing over cross slide | MM | 220 |
| Max. work length | Mm | 850 |
| Max. Z axis Travel | MM | 1000 |
| Max. X axis Travel | MM | 250 |
| Spindle bore | MM | 52 |
| Spindle nose | A2-6 | |
| Spindle speed range | RPM | 100-2500 |
| Spindle type | Independent spindle | |
| Chuck | unit | manual 3 jaws 160mm |
| Bed width | MM | 330 |
| x/z fast feed | MM | 6000/8000 |
| x/z cutting travel speed | Mm/min | 1-6000 |
| Number of tool turret | Mm/min | 4/6/8 turret |
| Tool shank type | 20*20 | |
| Positioning accuracy | MM | X≤0.010 Z ≤0.015 |
| Repeatability Psoitioning accuracy | MM | X≤0.0075 Z ≤0.010 |
| Min. unit set | MM | 0.001 |
| roundness | MM | ≤0.007 |
| Diameter uniformity | MM | ≤0.03 （length 300） |
| Flatness | MM | ≤0.02 （Diameter 300） |
| Surface Roughness (Steel) | MM | Ra1.6um |
| Dia. of tailstock sleeve | Ra1.6um | 60 |
| Tailstock sleeve taper | MM | MT4 |
| Max. Tailstock sleeve travel | 140 | |
| Spindle drive motor power | MM | 5.5 |
| Coolant pump power | KW | 120 |
| size | W | 2150X1400X1600 |
| weight | 1.7T |
