VTC1600 Vertical CNC lathe for machining automotive parts
| SPECIFICATIONS | Units | VTC1600 |
| Max. swing diameter | mm | 1600 |
| Max. Turning height | mm | 1400/1600 |
| Spindle nose | – | A2-15 |
| Spindle bearing configuration | – | thrust roller bearing |
| Spindle load | kg | 3500 |
| Spindle speed range | rpm | 15-500 |
| Max.torque of spindle | NM | 3560 |
| Spindle chuck diameter | mm | 1250(Hydraulic) |
| Max. tool post travel (vertical) | mm | 900 |
| Max. tool post travel (horizontal) | mm | -50~850 |
| Distance between tool post and chuck surface |
mm | 150-1050 |
| X axis rapid traverse | mm/min | 15000 |
| Z axis rapid traverse | mm/min | 12000 |
| Cutting feed speed | mm/min | 0.1-5000 |
| X axis motor power | kw | 3.5 |
| X axis motor torque | NM | 22 |
| Z axis motor power | kW | 3.5 |
| Z axis motor torque | NM | 22 |
| Turret/tool post | – | Hydraulic turret |
| Tool size | mm | 32*32 |
| Main motor power | kW | 30/37 |
| Positioning accuracy | mm | ±0.01 |
| Repeat positioning accuracy | mm | ±0.0075 |
| Machine weight | kg | 15000 |
| Overall dimensions | mm | 3300*3200*3700 |

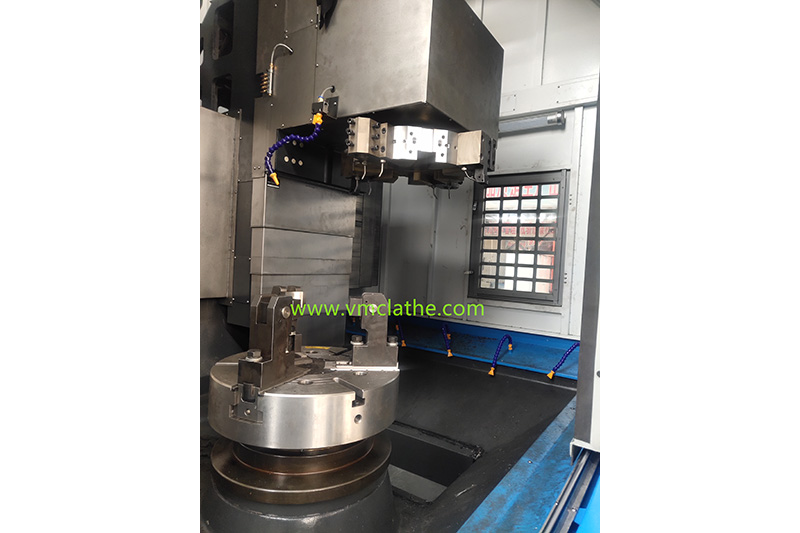

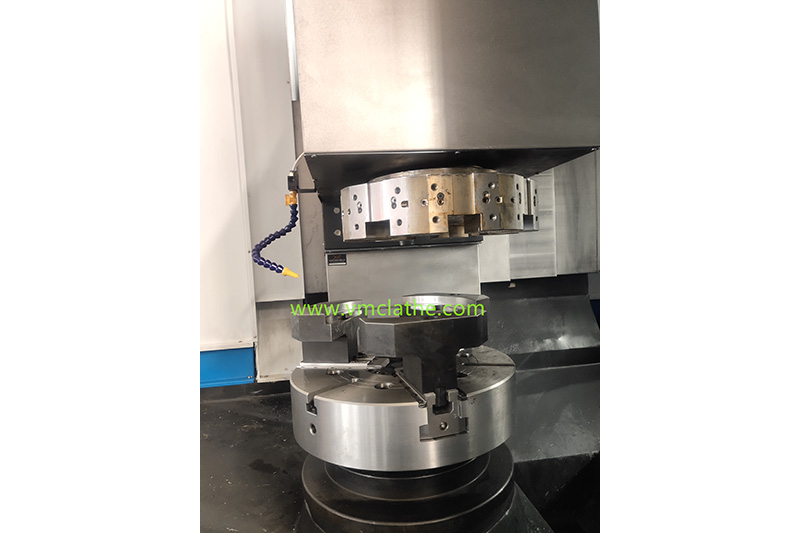

This machine tool is an automated CNC machining machine tool. It is used to process the inner and outer cylindrical surfaces, conical surfaces, end faces, grooving and chamfering of parts. It is especially suitable for automotive brake hubs, wheel drums, clutch pressure plates, and flywheels. Processing of shells and other parts.
