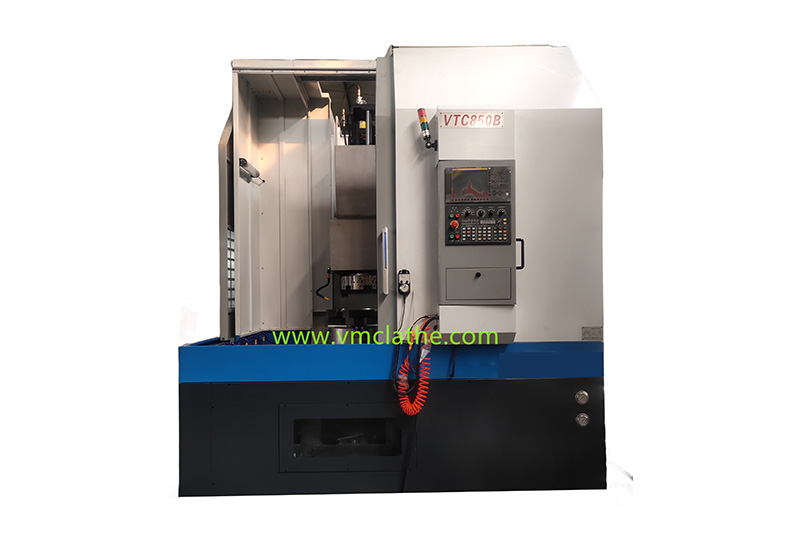

Vertical CNC lathe machine China factory direct sale
| Specification | Unit | VTC850 |
| Max. swing diameter | Mm | 900 |
| Max. turning diameter | Mm | 850 |
| Max.travel of vertical tool post(vertical) | mm | 650 |
| Max.travel of vertical tool post(horizontal) | mm | -50-550 |
| Distance between tool post and the surface of chuck | mm | 100-750 |
| Spindle nose | – | A2-11 |
| spindle bearing configuration | – | NN3036 180X280X74 Double row cylindrical roller bearing |
| NN3030 150X225X56 Double row cylindrical roller bearing | ||
| 234436 180X280X120 Two-way thrust angular contact ball bearing | ||
| Spindle speed range | r/min | 50-800 |
| Max.torque of spindle | NM | 885 |
| Main motor power | KW | 22/30(Rated speed 600, rated torque 350NM) |
| X axis rapid traverse | M/min | 15 |
| Z axis rapid traverse | M/min | 12 |
| Cutting feed speed | Mm/min | 0.1-5000 |
| X axis motor power and torque | Kw/Nm | 2.4/15 |
| Z axis motor power and torque | Kw/Nm | 2.8/18 |
| Turret/tool post | – | 8 position hydraulic turret |
| Tool section size | mm | 32×32 |
| Diameter of manual 4-jaw chuck | mm | 630 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.005 |
| Machine weight | KG | 8800 |
| Overall dimensions | mm | 2800×2000×3200 |
This machine tool is an automated CNC machining machine tool. It is used to process the inner and outer cylindrical surfaces, conical surfaces, end faces, grooving and chamfering of parts. It is especially suitable for automotive brake hubs, wheel drums, clutch pressure plates, and flywheels. Processing of shells and other parts.
