China New Pipe Threading CNC Lathe Machine QK1322
CNC Lathe Turning Center for Pipe Threading

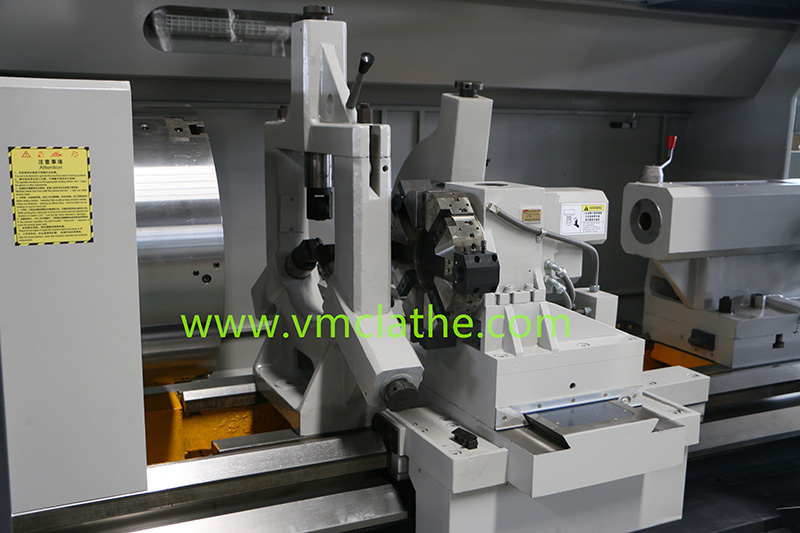

Large Bore CNC Lathe for Threading Pipes
Pipe threading cnc lathe machine QK1322
| Specification | QK1322 | |
| Swing over bed | mm | 630/800 |
| Swing over cross slide | mm | 340/520 |
| Distance between centers | mm | 1000-6000 |
| Pipe threading range | mm | 50-220 |
| Guideway width | mm | 550 |
| Max.load capacity | T | 3 |
| Spindle bore | mm | 225 |
| Spindle speed steps | — | VF.4 steps |
| Spindle speed range | rpm | 20-600 |
| Chuck | mm | Φ500/3-jaw manual |
| Turret/tool post | — | NC turret 4 position |
| Tool shank size | mm | 32×32 |
| Y axis travel | mm | 320/420 |
| Z axis travel | mm | 1000-6000 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |
| Tailstock quill diameter | mm | φ100 |
| Tailstosk quill taper | mm | MT5/MT6 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kW | 11 |
| Coolant pump motor | kW | 0.25 |
| Width x Height | mm | 1880×1850 |
| Length | mm | 3000/8300 |
| Net weight | T | 4.7-8.7 |
Pipe threading cnc lathe machine for Threaded Rod Manufacturing with CNC Precision

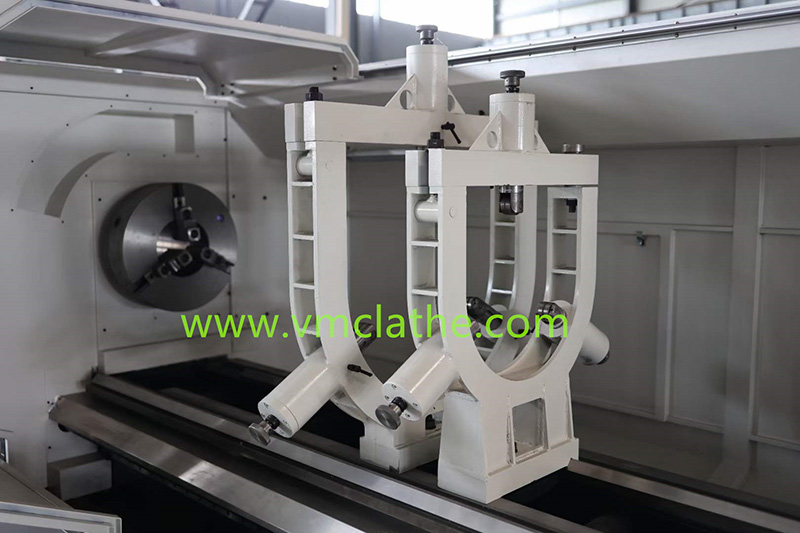

QK1322 Detail Display
