Pipe Threading CNC Machine QK1319 with Big Bore
QK1319 High Precision Pipe Threading cnc lathe machine factory direct sale
Long Bed CNC Lathe for Pipe Threading made in China
pipe threading cnc lathe machine QK1319
| SPECIFICATION | Units | QK1319 |
| Manual | ||
| Swing over bed | mm | 630/800 |
| Swing over cross slide | mm | 340/520 |
| Distance between centers | mm | 1000/1500/3000 |
| Pipe threading range | mm | 50-193 |
| Guideway width | mm | 550 |
| Max. load capacity | T | 3 |
| Spindle bore | mm | 200 |
| Spindle speed steps | – | VF. 4 steps |
| Spindle speed range | rpm | 20-550 |
| Chuck | mm | φ500 3-jaw manual |
| Turret/tool post | – | CNC turret 4 position |
| Tool shank size | mm | 32 x 32 |
| X axis travel | mm | 320/420 |
| Z axis travel | mm | 850/1350/2850 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |
| Tailstock quill diameter | mm | φ100 |
| Tailstock quill taper | – | MT5 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kW | 11 |
| Coolant pump motor | kW | 0.125 |
| Weight for 1000 | kg | 4600 |
| Weight for 1500 | kg | 5100 |
| Weight for 3000 | kg | 6100 |
| Dimension for 1000 | mm | 3300x1880x1850 |
| Dimension for 1500 | mm | 3800x1880x1850 |
| Dimension for 3000 | mm | 5300x1880x1850 |

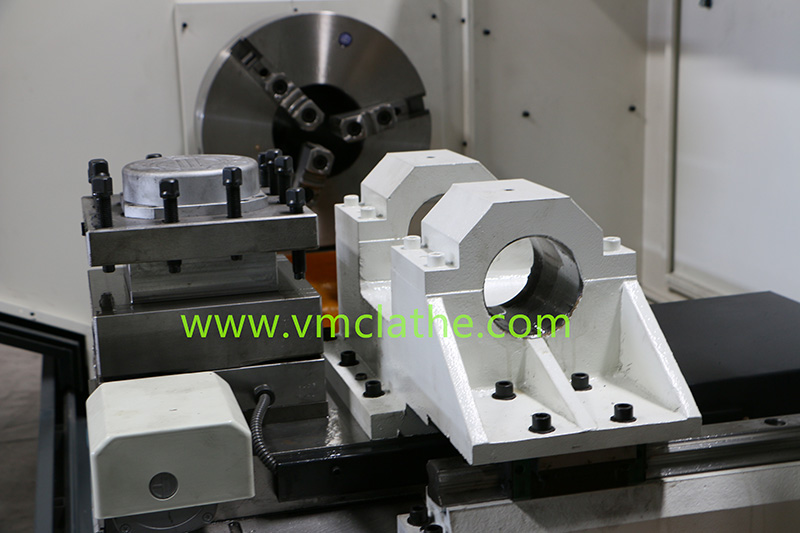

Pipe threading cnc lathe machine with big bore and bid width
QK1319 Detail Display
