Car Wheel Rim Repair CNC Lathe Machine WRC22 Made in China

Touch screen wheel repair cnc althe machine factory direct sale

Wheel rim Refurbishment cnc lathe machine equipment manufacturer

wheel repair cnc lathe machine WRC22

ITEMS	WRC22	WRC26		WRC30	WRC28		WRC32
Max. swig over bed(mm)	635(25’)	720(28’)		800(31’)	770		820’
Max. swig over cross slide (mm)	410	540		550	540		550
Max. Size of alloy wheel	22’	26’		30’	28’		32’
Cross slide travel (mm)	330	350		360	390
Width of the rail	265	400		450	400		450
Size of the three-jaw chuck	10’	12’		15’	15’		15’
Range of spindle speed (RPM)	50~2500	50~2000		50~1600	50~2000		50~1600
Spindle speed control	Automatic	Automatic		Automatic
Spindle bore (mm)	Φ60	Φ60		Φ82
Taper of spindle bore	MT6	MT6		1:20/ Φ 90
Taper of spindle nose	A2-6	A2-6		D1-8
Max. size of tool post	25×25mm	25×25mm		25×25mm
Stations of tool carrier	4 position	4 position		4 position
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8m/min, (X) cross 4m/min
Motor power	5.5KW	5.5KW		11KW
Machine base	Whole cast iron base
Machine size(L×W×H) (mm³)	2100 ×1600×1600		2200×1650×1750			2430×1730×1840
Net weight	1950kgs		2600kgs			3500kgs
Mark	Order		Stock			Order

Wheel surface cutting cnc lathe machine WRC22 PC control touch screen made in China

WRC22 Detail Display

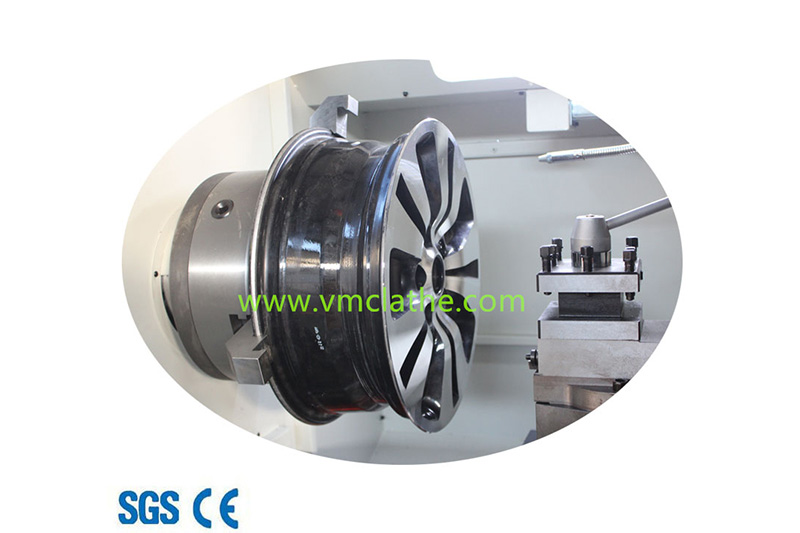

touch screen wheel repair cnc althe machine factory direct sale

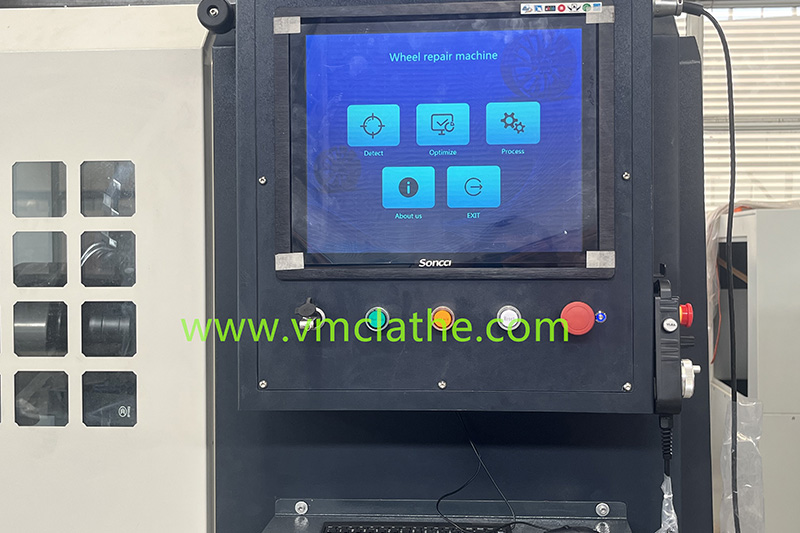

Wheel rim Refurbishment cnc lathe machine equipment manufacturer

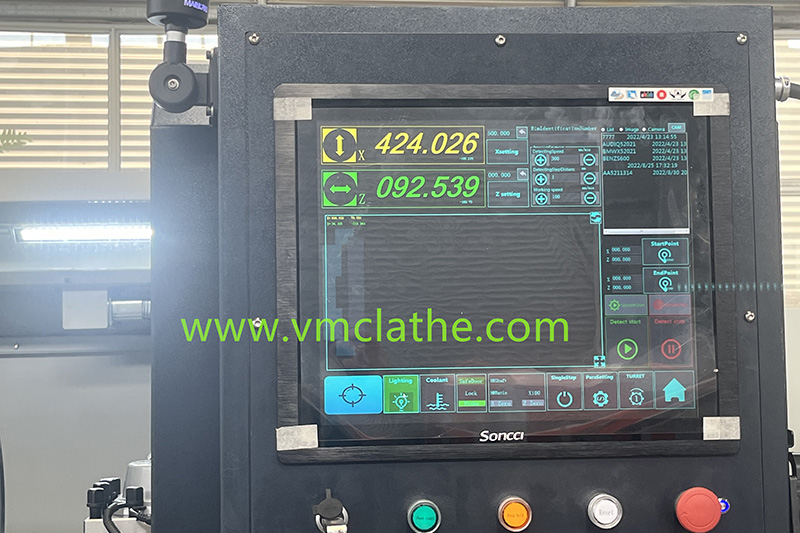

wheel surface cutting cnc lathe machine WRC22 PC control touch screen made in China

Standard configuration:

3-Jaws Chuck（With Special Soft Jaws)
Manual Quick Change Toolpost ,four-station turret,
Automatic lubrication system,
Turning the cooling system.
With probing system(TP300 Pioneer Sensing Probe TP300;)
cnc controller syntec
Full Enclose(Security Guard Door)
Specific Digital Optimization Software
Training Video CD
Work Lighting System

Services:

After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
Mechanical Support
Software Support
Comprehensive Training
Probe alloy wheel profile

Just PROBE & Diamond CUT !

Once the machine has automatically probed the wheel profile there is no need for you to waste time programming ,our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!
