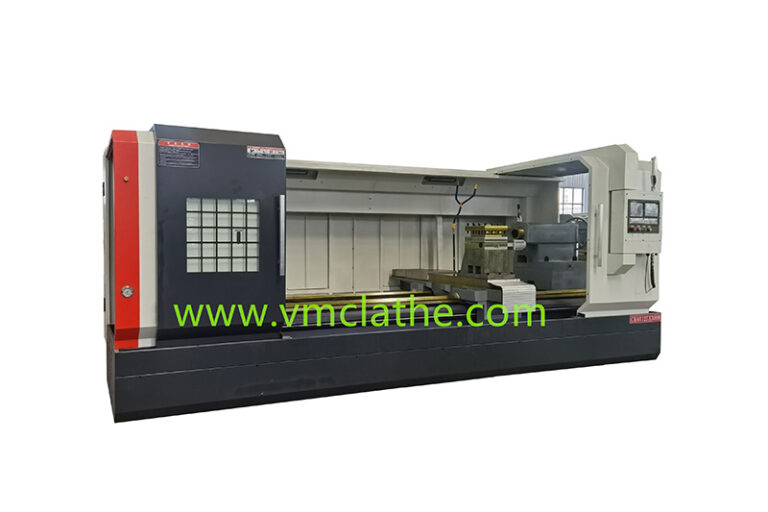

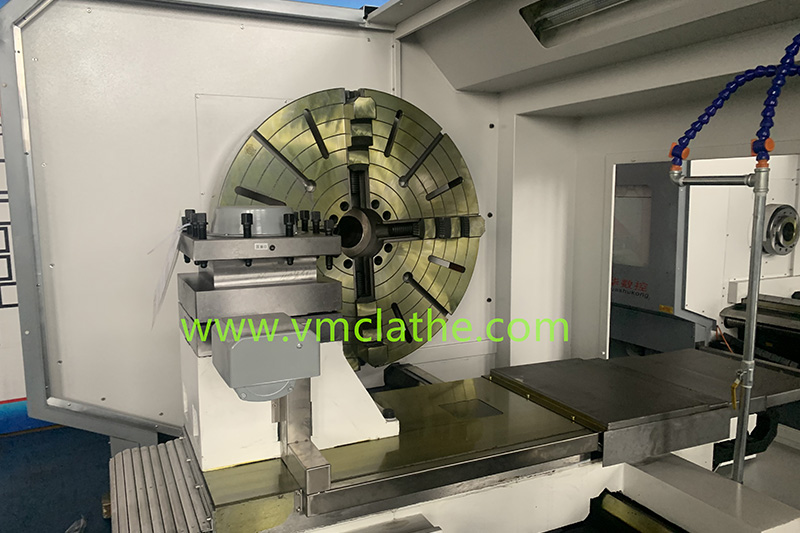

Large guideway width heavy duty large chuck cnc lathe machine CK61125
| ITM | unit | CK61125 |
| Max. Swing over bed | MM | 1250 |
| Max. Swing over cross slide | MM | 880 |
| Max. center distance | MM | 1500 |
| Spindle bore | MM | 130 |
| Spindle speed steps | 4 steps | |

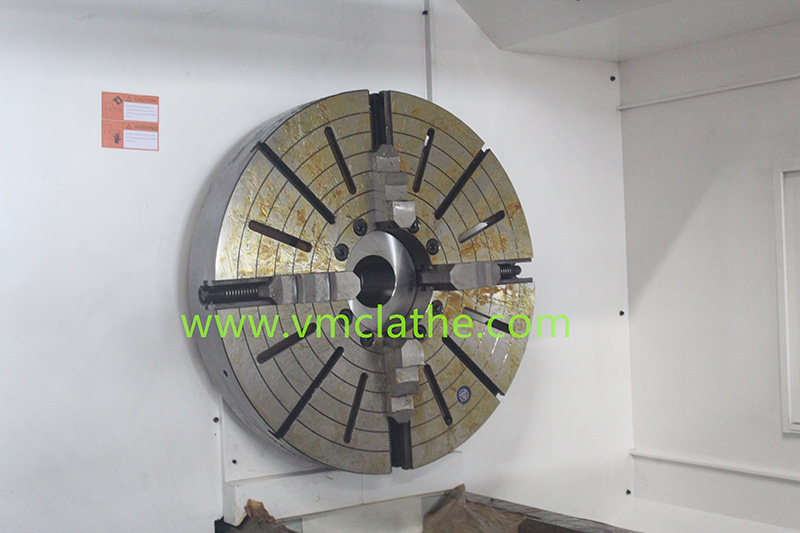

| Chuck | MM | Manual 800 4-jaws chuck |
| Bed width | MM | 755 |
| x/z fast feed | Mm/min | 6000/8000 |
| Number of tool turret | 4 | |
| Tool shank type | MM | 32*32 |
| Positioning accuracy | MM | X-axis (transverse) ≤ 0.02 Z-axis (longitudinal) ≤ 0.025 |
| Repeatability Positioning accuracy | MM | X-axis (transverse) ≤ 0.015 Z-axis (longitudinal) ≤ 0.020 |
| roundness | MM | ≤0.015 |
| Diameter uniformity | MM | ≤0.03（length 300mm） |
| Flatness | MM | ≤0.02Dia.300mm） |
| Surface roughness | ≤Ra3.2um Steel parts | |
| Dia.of tailstock sleeve | MM | 150 |
| Tailstock sleeve taper | MT6 | |
| Max. Tailstock sleeve travel | MM | 250 |
| Spindle drive motor power | KW | 22 |
| Coolant pump power | KW | 120 |
