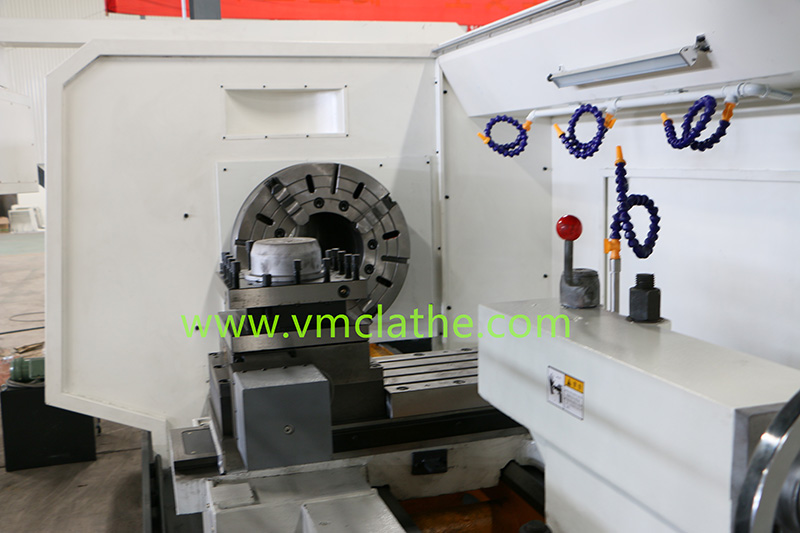

Big Bore CNC Lathe for Precision Threading QK1325
China factory for pipe threading cnc lathe machine manufacturing

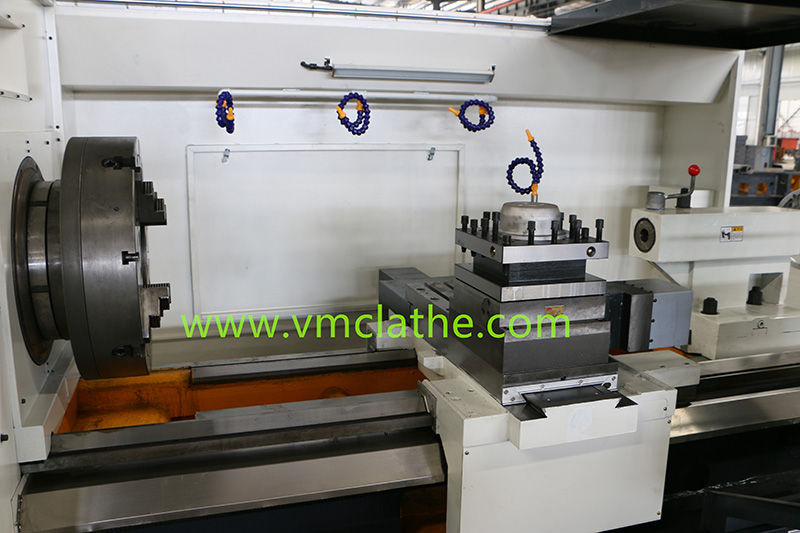

QK1325 Pipe Threading CNC Lathe Fanuc Controlled factory direct sale
| SPECIFICATION | Units | QK1325 |
| Swing over bed | mm | 800 |
| Swing over cross slide | mm | 480 |
| Distance between centers | mm | 1000/1500/3000 |
| Pipe threading range | mm | 120-250 |
| Guideway width | mm | 600 |
| Max. load capacity | T | 4 |
| Spindle bore | mm | 255 |
| Spindle speed steps | – | VF. 4 steps |
| Spindle speed range | rpm | 20-420 |
| Chuck | mm | φ630 4-jaw manual |
| Turret/tool post | – | CNC turret 4 position |
| Tool shank size | mm | 32 x 32 |
| X axis travel | mm | 420 |
| Z axis travel | mm | 850/1350/2850 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |
| Tailstock quill diameter | mm | φ120 |
| Tailstock quill taper | – | MT6 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kW | 15 |
| Coolant pump motor | kW | 0.125 |
| Weight for 1000 | kg | 6000 |
| Weight for 1500 | kg | 6500 |
| Weight for 3000 | kg | 7500 |
Precision CNC Pipe Threading Machine from China
QK1325 Detail Display
