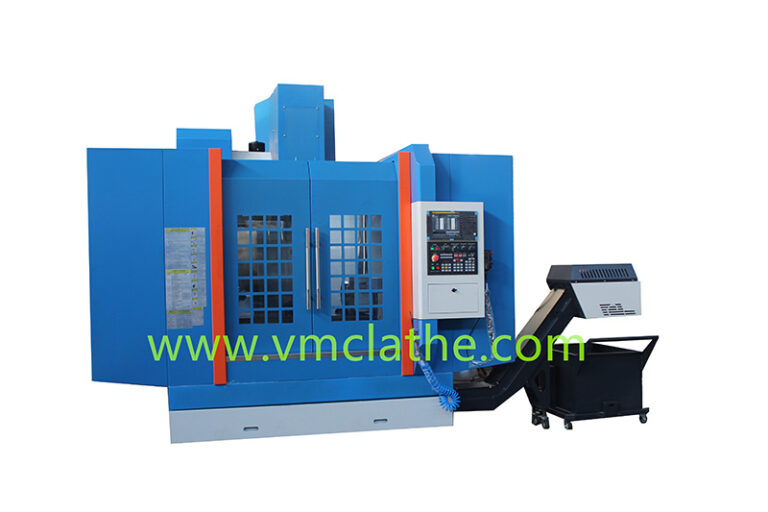

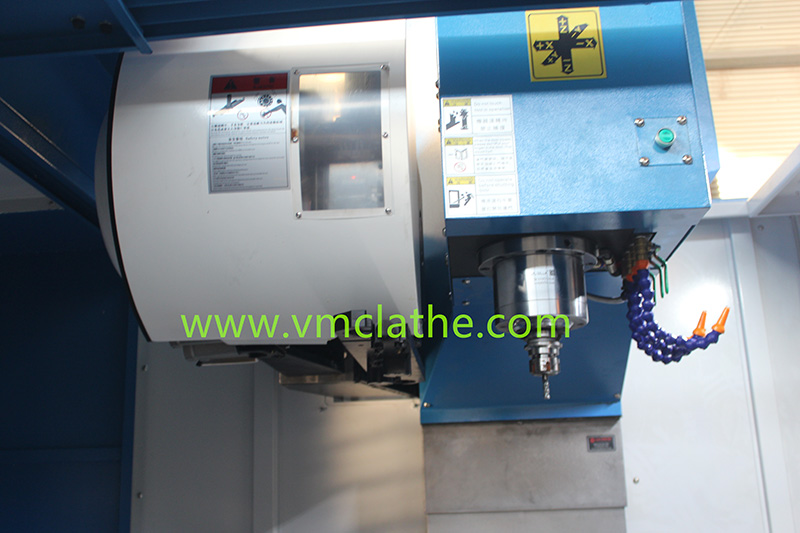

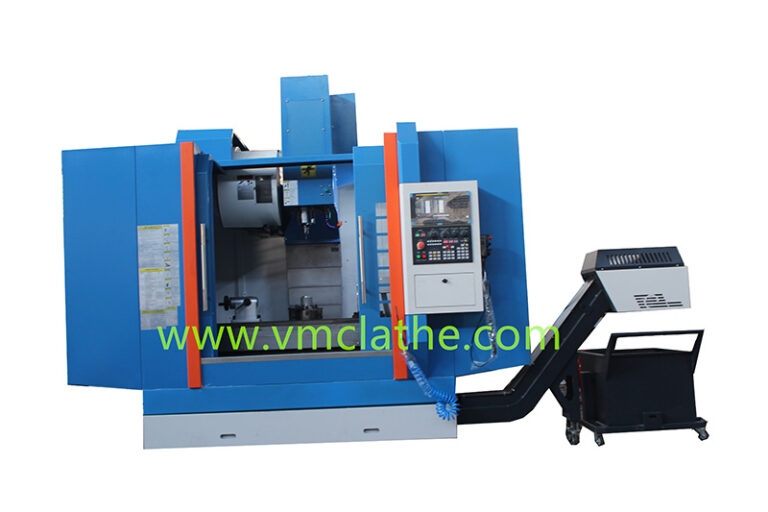

High speed metal processing Cnc Vertical Machining Center VMC1270 with 4axis and auto tool changer
| ITEM | UNIT | VMC1270 |
| Size | MM | 1300 X700 |
| Max load | KGS | 850 |
| T-Slot size | MM | 18 X 5 |
| X-axis | MM | 1200 |
| Y-axis | MM | 700 |
| Z-axis | MM | 700 |
| Spindle nose to table | MM | 100-800 |
| Spindle center to z axis guide surface | MM | 750 |
| Spindle taper | BT40-150 | |
| Spindle speed | RPM | 8000 |
| spindle motor power | KW | 11/15 |
| X Fast feed | M/MIN | 24 |
| Y Fast feed | M/MIN | 24 |
| Z Fast feed | M/MIN | 20 |
| cutting speed | MM/MIN | 1-1000 |
| X feed motor power | N | 22 |
| Y feed motor power | N | 22 |
| Z feed motor power | N | 22 |
| Types tool changers | Funnel type tool changer/Arm type tool changer ATC | |
| Capacity of tools | 20/24 | |
| Tool change time | S | 8/2.5 |
| Position Accuracy | MM | ±0.006 |
| Repeatability | MM | 0.008 |
| machine size | MM | 3500 X 2900 X 2800 |
| weight | Kgs | 7000 |
