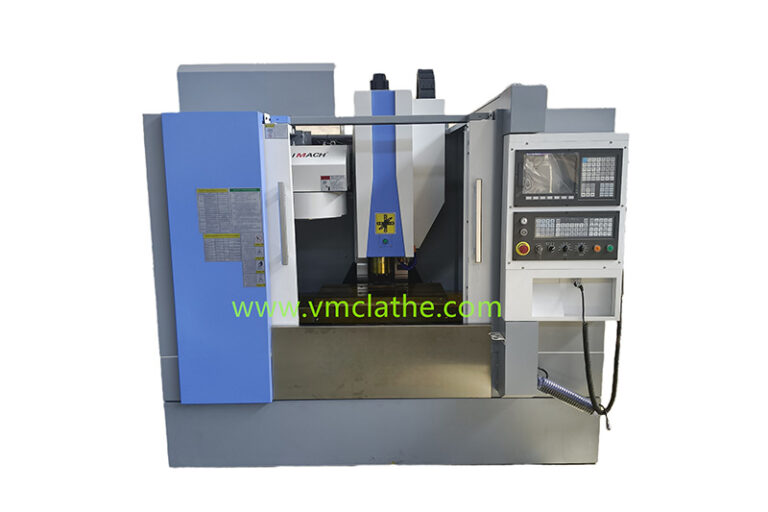

VMC 5 axis cnc milling machine cnc vertical machining center 3 4 axis 5-axis machine centre for metal

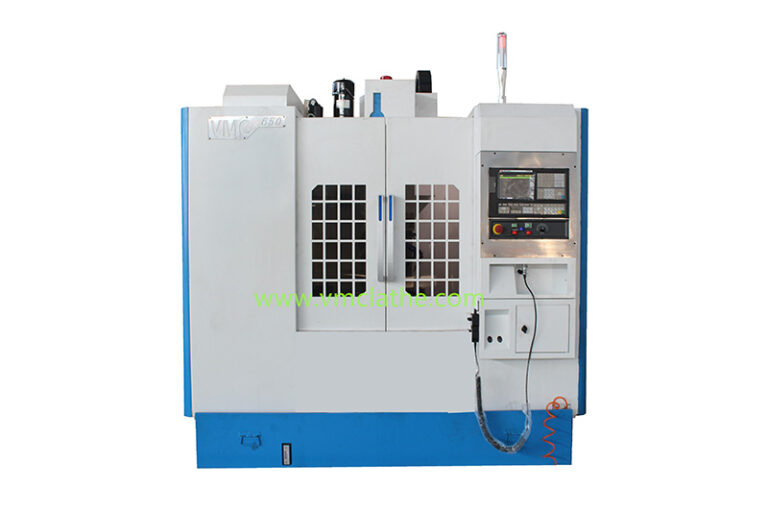

| ITEM | UNIT | VMC650 |

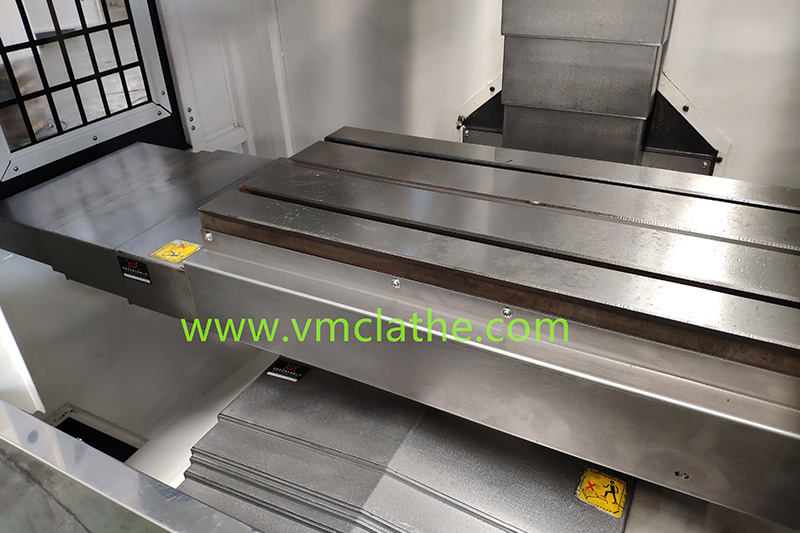

| Size | MM | 800 X 400 |
| Max load | KGS | 500 |
| T-Slot size | MM | 16 X 3 |
| X-axis | MM | 650 |
| Y-axis | MM | 400 |
| Z-axis | MM | 500 |
| Spindle nose to table | MM | 90-590 |
| Spindle center to z axis guide surface | MM | 470 |
| Spindle taper | BT40-120 | |
| Spindle speed | RPM | |
| spindle motor power | KW | 5.5 |
| X fast feed | M/MIN | 24 |
| Y fast feed | M/MIN | 24 |
| Z fast feed | M/MIN | 20 |
| cutting speed | MM/MIN | 1-1000 |
| X feed motor power | N | 10 |
| Y feed motor power | N | 10 |
| Z feed motor power | N | 10 |
| Types tool changers | Funnel type tool changer/Arm type tool changer | |
| Capacity of tools | 16/16 | |
| Tool change time | S | 8/2.5 |
| Position Accuracy | MM | ±0.006 |
| Repeatability | MM | 0.008 |
| machine size | MM | 2200X1900X2500 |
|
Packing dimension |
MM | 2400X2100X
2270 |
| weight | Kgs | 3100 |
