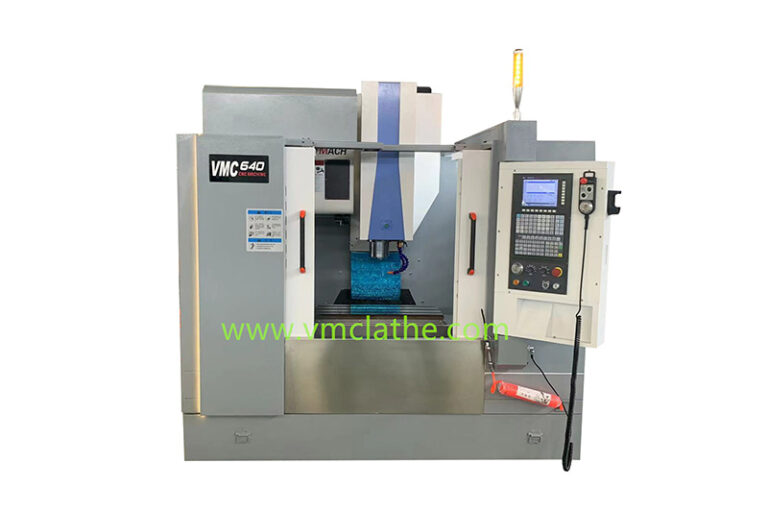

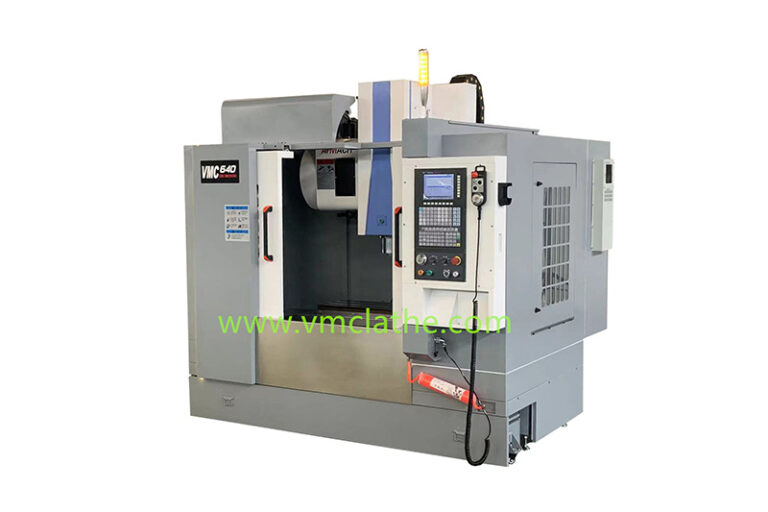

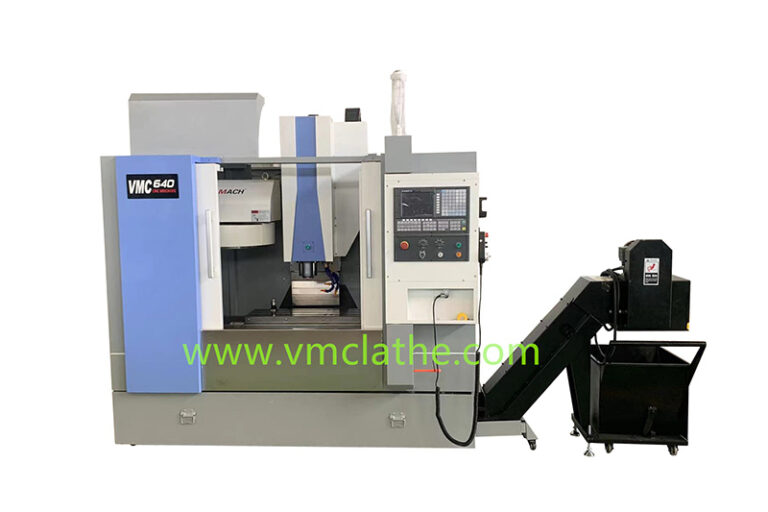

CNC Milling Machine for mold die making
| ITEM | UNIT | VMC640 |
| Size | MM | 800 X 320 |
| Max load | KGS | 400 |
| T-Slot size | MM | 16 X 3 |
| X-axis | MM | 600 |
| Y-axis | MM | 400 |
| Z-axis | MM | 500 |
| Spindle nose to table | MM | 130-630 |
| Spindle center to z axis guide surface | MM | 430 |
| Spindle taper | BT40-120 | |
| Spindle speed | RPM | 8000 |
| spindle motor power | KW | 5.5 |
| X fast feed | M/MIN | 24 |
| Y fast feed | M/MIN | 24 |
| Z fast feed | M/MIN | 20 |
| cutting speed | MM/MIN | 1-1000 |
| X feed motor power | N | 6 |
| Y feed motor power | N | 7.5 |
| Z feed motor power | N | 15 |
| Types tool changers | Funnel type tool changer/Arm type tool changer | |
| Capacity of tools | 12/16 | |
| Tool change time | S | 8/2.5 |
| Position Accuracy | MM | ±0.006 |
| Repeatability | MM | 0.008 |
| machine size | MM | 2200 X 1900 X 2500 |
|
Packing dimension |
MM | 2400 X 2100 X 2300 |
| weight | Kgs | 2800 |
