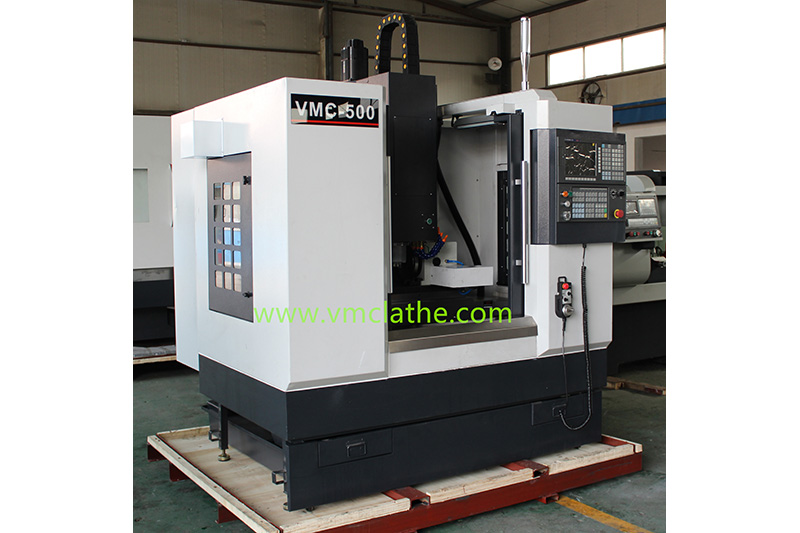

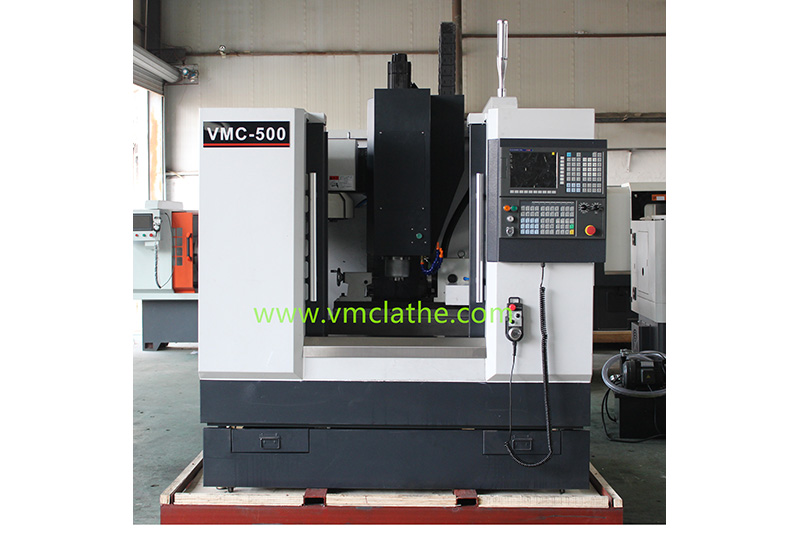

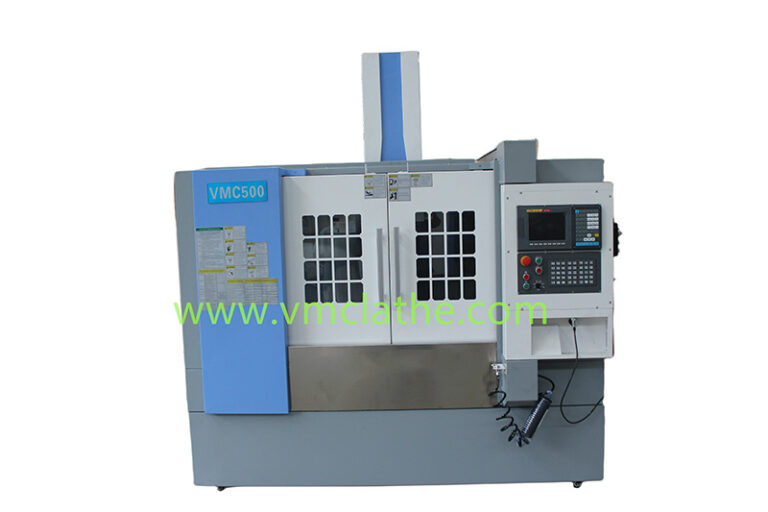

CNC Milling Machine For Sale VMC500 Made In China Machining Center
| ITEM | UNIT | VMC500 |
| Table Size | MM | 800 X260 |
| Max load | KGS | 400 |
| T-Slot size | MM | 16 X 3 |
| X-axis | MM | 500 |
| Y-axis | MM | 300 |
| Z-axis | MM | 400 |
| Spindle nose to table | MM | 100-500 |
| Spindle center to z axis guide surface | MM | 380 |
| Spindle taper | BT40-120 | |
| Spindle speed | RPM | 6000 |
| spindle motor power | KW | 3.7 |
| X Fast feed | M/MIN | 24 |
| Y Fast feed | M/MIN | 24 |
| Z Fast feed | M/MIN | 20 |
| cutting speed | MM/MIN | 1-10000 |
| X feed motor power | N | 15 |
| Y feed motor power | N | 15 |
| Z feed motor power | N | 15 |
| Types tool changers | Funnel type tool changer | |
| Capacity of tools | 12 | |
| Tool change time | S | 8 |
| Position Accuracy | MM | ±0.006 |
| Repeatability | MM | 0.008 |
| machine size | MM | 2000 X 1800 X 2300 |
| weight | Kgs | 2200 |
