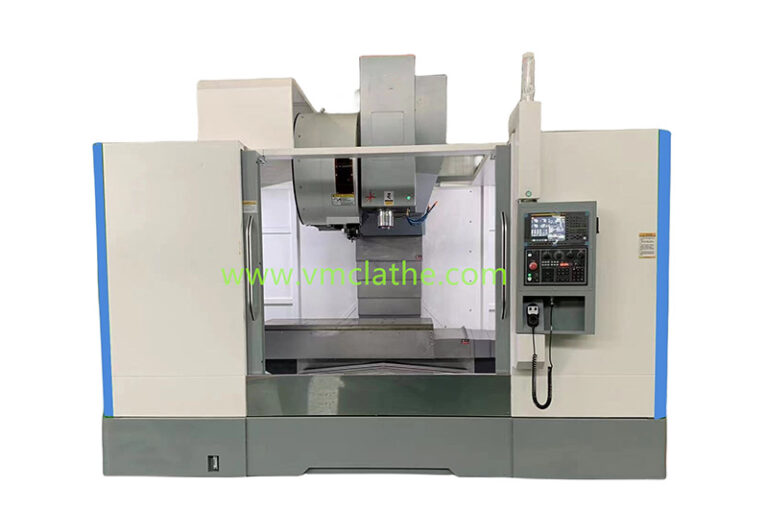

Vertical Machining Center CNC 5 Axis Metal Milling Machine VMC1580 manufacturer
| ITEM | UNIT | VMC1580 |

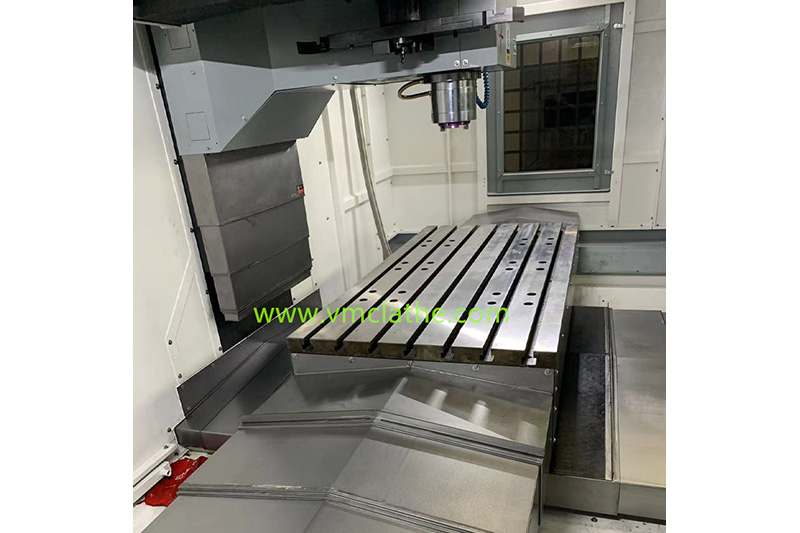

| Table Size | MM | 1600 X 800 |
| Max load | KGS | 1500 |
| T-Slot size | MM | 18 X 5 |
| X-axis | MM | 1500 |
| Y-axis | MM | 800 |
| Z-axis | MM | 700 |
| Spindle nose to table | MM | 170-870 |
| Spindle center to z axis guide surface | MM | 800 |
| Spindle taper | BT40-150(optional BT50) | |
| Spindle speed | RPM | 8000 |
| spindle motor power | KW | 11 |
| X Fast feed | M/MIN | 15 |
| Y Fast feed | M/MIN | 15 |
| Z Fast feed | M/MIN | 12 |
| cutting speed | MM/MIN | 1-5000 |
| X feed motor power | N | 28 |
| Y feed motor power | N | 28 |
| Z feed motor power | N | 28 |

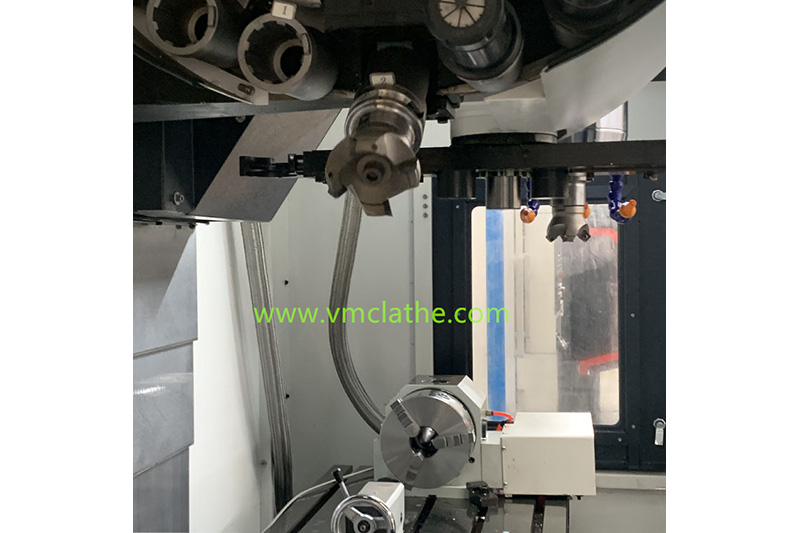

| Types tool changers | Arm type tool changer ATC | |
| Capacity of tools | 24 | |
| Tool change time | S | 2.5 |
| Position Accuracy | MM | ±0.01 |
| Repeatability | MM | ±0.008 |
| machine size | MM | 4300 X 3200 X 3100 |
| weight | Kgs | 14000 |
| Linear guideways | Taiwan Hiwin linear type roller guideways ,
X and Z 6 set blocks X axis –55 Y axis —45*4 Z axis –55 |
|
| Ball screw | Taiwan Hiwin C3 5012 ballscrews | |
