CNC Pipe Threading Lathe Machine QK1313
China Made CNC Lathe for Pipe Threading Automated Thread Cutting Precision
CNC Lathe for Pipe Threading Fanuc Controller 2000,3000,4000mm
Pipe threading cnc lathe machine QK1313
| Specification | QK1313 | |
| Swing over bed | mm | 630/800 |
| Swing over cross slide | mm | 340/520 |
| Distance between centers | mm | 1000-6000 |
| Pipe threading range | mm | 30-126 |
| Guideway width | mm | 550 |
| Max.load capacity | T | 3 |
| Spindle bore | mm | 130 |
| Spindle speed steps | — | VF.3 steps |
| Spindle speed range | rpm | 30-800 |
| Chuck | mm | φ400/3-jaw manual |

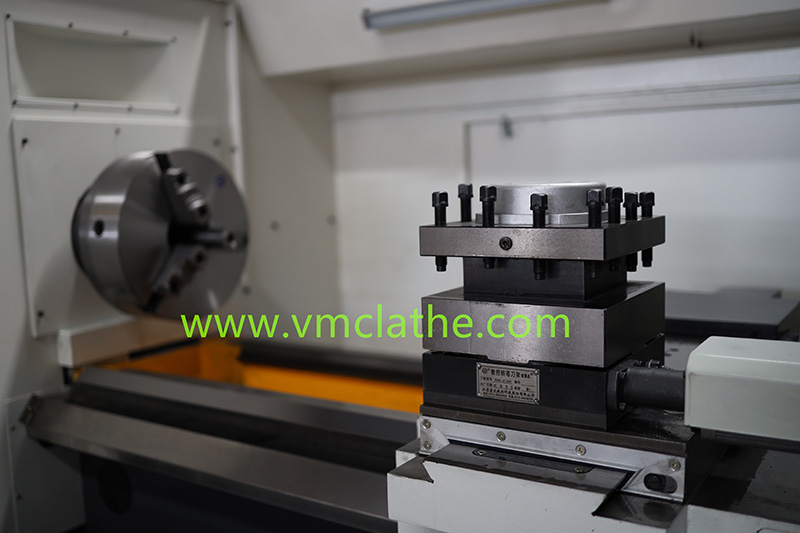

| Turret/tool post | — | NC turret 4 position |
| Tool shank size | mm | 32×32 |
| Y axis travel | mm | 320/420 |
| Z axis travel | mm | 1000-6000 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |
| Tailstock quill diameter | mm | φ100 |
| Tailstosk quill taper | mm | MT5/MT6 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kW | 11 |
| Coolant pump motor | kW | 0.25 |
| Width x Height | mm | 1800×1850 |
| Length | mm | 3000/8300 |
| Net weight | T | 4-8 |
Get Free Quote of QK1313
