Pipe Threading Lathe QK1353
High-Performance CNC Turning in Threaded Applications
Precision CNC Threading Machine from China
pipe threading cnc lathe machine QK1353
| Item | Unit | QK1353 | |
| Max dia.swing over bed | mm | 1250 | |
| Max dia.swing over cross slide | mm | 860 | |
| Max.length of work-piece | mm | 1500 | |
| Pipe threading range | mm | Φ350-525 | |
| Width of bed | mm | 755 | |
| Spindle bore | mm | 540 | |
| Spindle center height | mm | 625 | |
| Power of spindle motor | KW | 30 | |
| Mode of spindle speed | Two gears,smooth adjustment | ||
| Range of spindle speed | r/min | L:20-80 H:55-220 |
|
| Max.traverse of X/Z | mm | X:650 Z:1250 |
|
| X/Z rapid traverse | mm/min | 4000/5000 | |
| Tailstock quill | Diameter | mm | 160/260 |
| Travel | mm | 300 | |
| Taper | Morse NO.6 | ||
| Turret | Model | SLD170A04N | |
| Tool post type | Vertical four-station | ||
| Section of tool shank | mm | 32×32 | |
| Turret indexing time | S | 5.6 | |

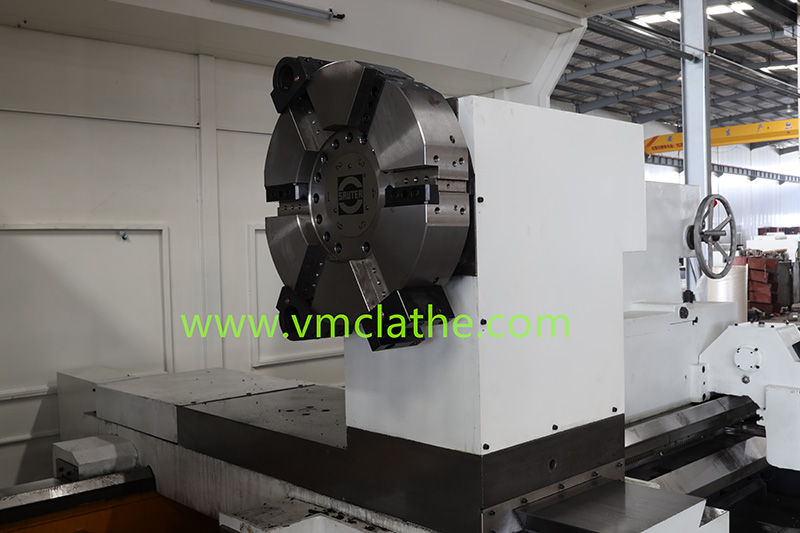

| Chuck | K66 four jaw electric chuck |
||
| Positioning accuracy | mm | 0.04 | |
| Repositioning accuracy | mm | 0.02 | |
| Overall dimensions(L*W*H) | mm | 4900×2300×2350 | |
| Machine weight | T | 16 | |
Get Free Quote of QK1353
