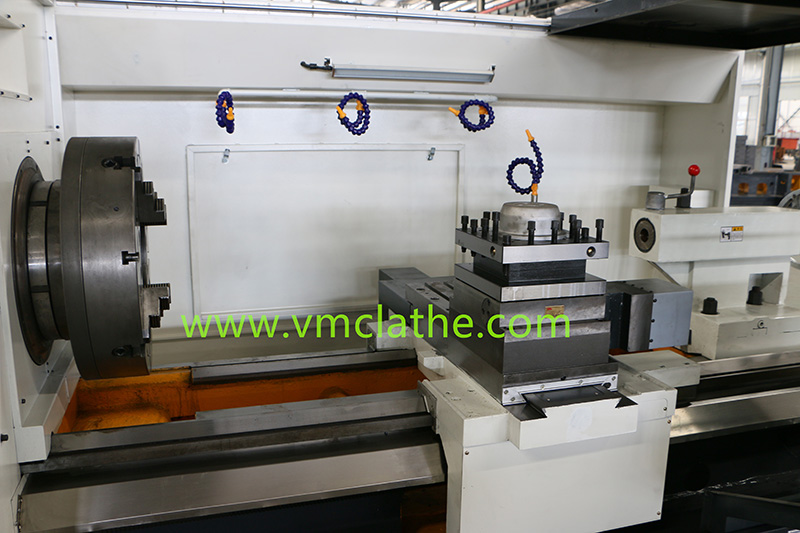

Pipe Threading CNC Lathe QK1330

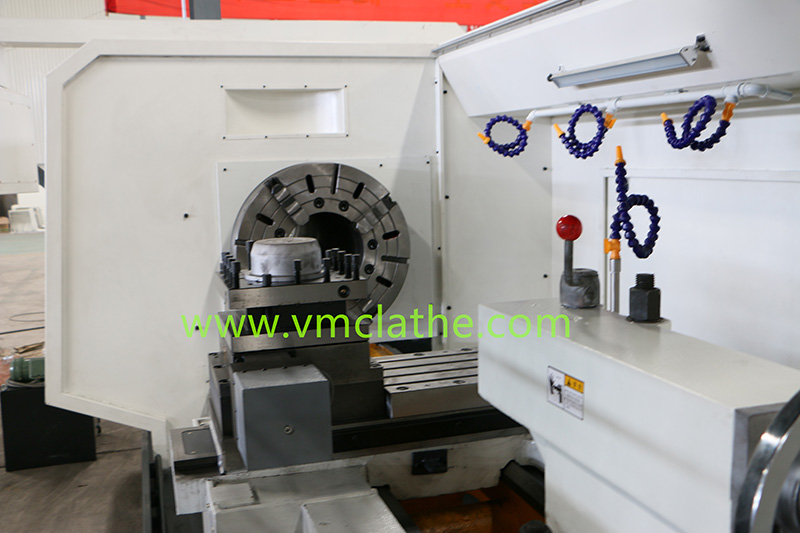

2000mm Threading Lathe for Pipe Manufacturing
Big Bore CNC Lathe for Large Pipes
pipe threading cnc lathe machine QK1330
| Item | Unit | QK1330 | |
| Max dia.swing over bed | mm | 800 | |
| Max dia.swing over cross slide | mm | 480 | |
| Max.length of work-piece | mm | 1500 | |
| Width of bed | mm | 600/755 | |
| Spindle bore | mm | 305 | |
| Power of spindle motor | Kw | 15 | |
| Mode of spindle speed | Two gears,smooth adjustment | ||
| Range of spindle speed | r/min | Low:20-100 High:100-300 | |
| Max.traverse of X/Z | mm | X:450/550 Z:1250 | |
| X/Z rapid traverse | mm/min | 4000 | |
| X-axis motor | Speed | r/min | 1500 |
| Torgue | N.m | 15/18 | |
| Power | Kw | 2.8 | |
| Speed | r/min | 1500 | |
| Z-axis motor | Torque | N.m | 18/22 |
| Power | Kw | 3.8 | |
| Tailstock quill | Diameter | mm | 100 |
| Travel | mm | 250 | |
| Taper | Morse NO.6 | ||
| Electric tool-post | Model | LDB4-6180 | |
| No.of tool stations | Vertical four-station | ||
| Dimension | mm | 32×32 | |
| Turret innndexing time | S | 2.6 | |
| Chuck | K11-630 three jaw chuck | ||
| Positioning accuracy | mm | 0.020 | |
| Repositioning accuracy | mm | 0.01 | |
| Overall dimensions(L*W*H) | mm | 4600×2060/2100×2100 | |
| Machine weight | T | 7.5/9.5 |
Get Free Quote of QK1330
