When choosing a slant bed CNC lathe with Y axis according to processing requirements, you need to consider many aspects to ensure that the selected equipment can meet specific production requirements. Here are some key factors:
1. Clear processing requirements
A. Part type: Determine the type of parts that need to be processed, such as shaft parts, disc parts or other complex shapes. This will directly affect the requirements for the processing capacity and accuracy of the lathe.
B. Material type: Understand the types of materials required for processing, such as steel, aluminum, copper, plastic, etc. Different materials have different requirements for the cutting performance, tool selection and cooling system of the lathe.
C. Accuracy requirements: Clarify the processing accuracy requirements of the parts, including dimensional accuracy, shape accuracy and position accuracy. This will determine the configuration of the lathe’s control system, servo motor and detection device.
D. Batch size: Select the model and specification of the lathe according to the scale of batch production. Large-scale production may require a higher degree of automation and faster processing speed, while small-scale production pays more attention to the flexibility and versatility of the lathe.
2. Consider the functional requirements with Y-axis
1. Processing range: The inclined bed CNC lathe with Y-axis can expand the processing range and realize more complex three-dimensional processing. Therefore, it is necessary to determine whether the parts to be processed have three-dimensional features and whether the travel of the Y-axis meets the processing requirements.
2. Processing efficiency: The increase of the Y-axis can improve the processing efficiency, especially when side processing or processing is required. Compound the Y-axis moving speed and height of different lathes to ensure that the production cycle requirements are met.
3. Programming and operation: Understand whether the CNC system of the lathe supports the programming and operation of the Y-axis. Ensure that the control system of the selected lathe is easy to learn, use and maintain costs to reduce operation and improve production efficiency.
3. Evaluate lathe performance and configuration
A. Bed material: High-quality bed material (such as cast iron) can ensure the rigidity and stability of the equipment, thereby improving processing accuracy.
B. Slave system: Selecting a high-response and high-response slave system can ensure the accuracy of position control, thereby improving processing accuracy. At the same time, the stability of the slave system is also crucial to ensure long-term stable operation.

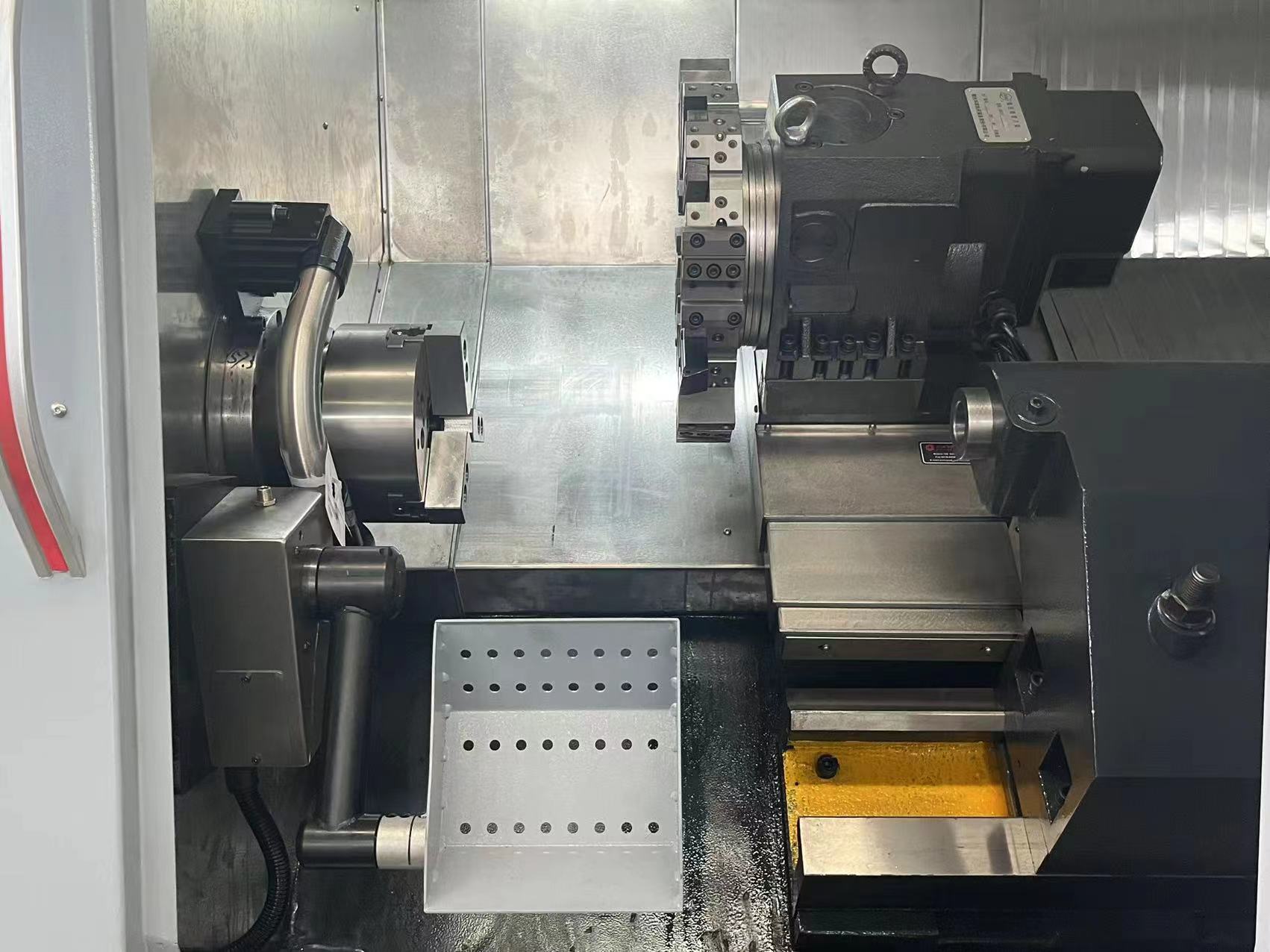

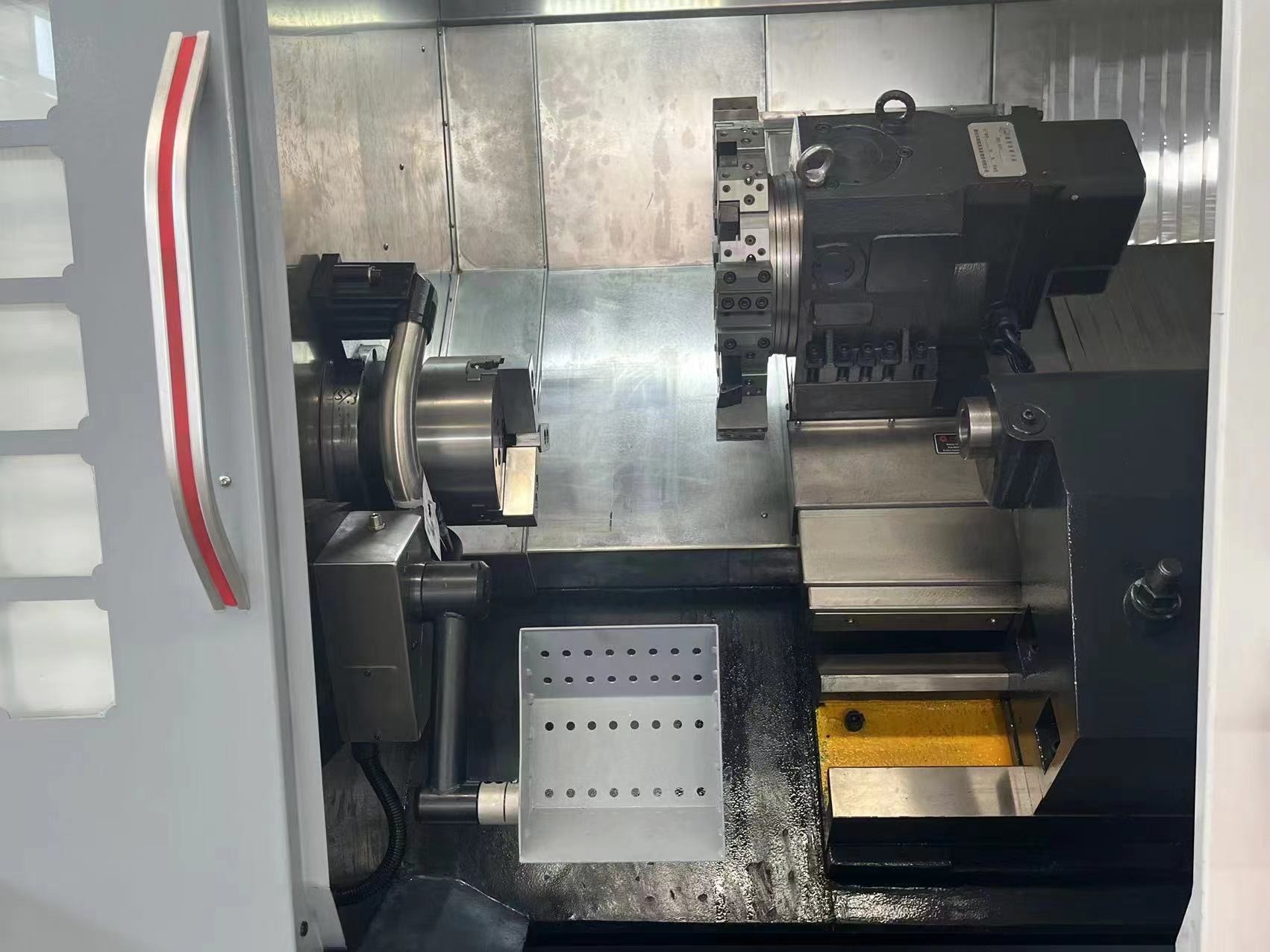

C. Spindle and turret: The accuracy and rigidity of torsion have a great influence on the processing quality. Choosing a high-torque, high-torque spindle, and a turret equipped with high rigidity and spindle can improve the processing efficiency and workpiece quality.
D. Cooling and chip removal system: A good cooling and chip removal system can ensure the stable operation of the equipment during the processing and improve the quality of the workpiece.
4. Consider after-sales service and technical support
A. Brand reputation: Only by choosing a lathe from a well-known brand can you ensure reliable product quality and after-sales service.
B. Technical support: Find out whether the manufacturer provides comprehensive technical support and training services to help solve problems encountered during use.
C. Spare parts supply: Ensure that the manufacturer can provide spare parts supply in a timely manner to reduce downtime caused by equipment failure.
5. Field investigation and trial machine
Before the final decision to purchase, it is recommended to conduct a field investigation and trial machine. Through field investigation, you can observe the appearance, details and actual operation of the equipment; through trial machine, you can actually experience the performance operation and processing effect of the equipment, so as to more accurately judge whether the equipment meets your needs.
In summary, choosing a CNC lathe with a slanted bed and a Y-axis according to processing requirements requires comprehensive consideration of multiple aspects. By clarifying processing requirements, considering the functional requirements with a Y-axis, evaluating lathe performance and configuration, considering after-sales service and technical support, and conducting on-site inspections and trials, you can ensure that the selected equipment can meet specific production requirements and improve production efficiency.
